Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

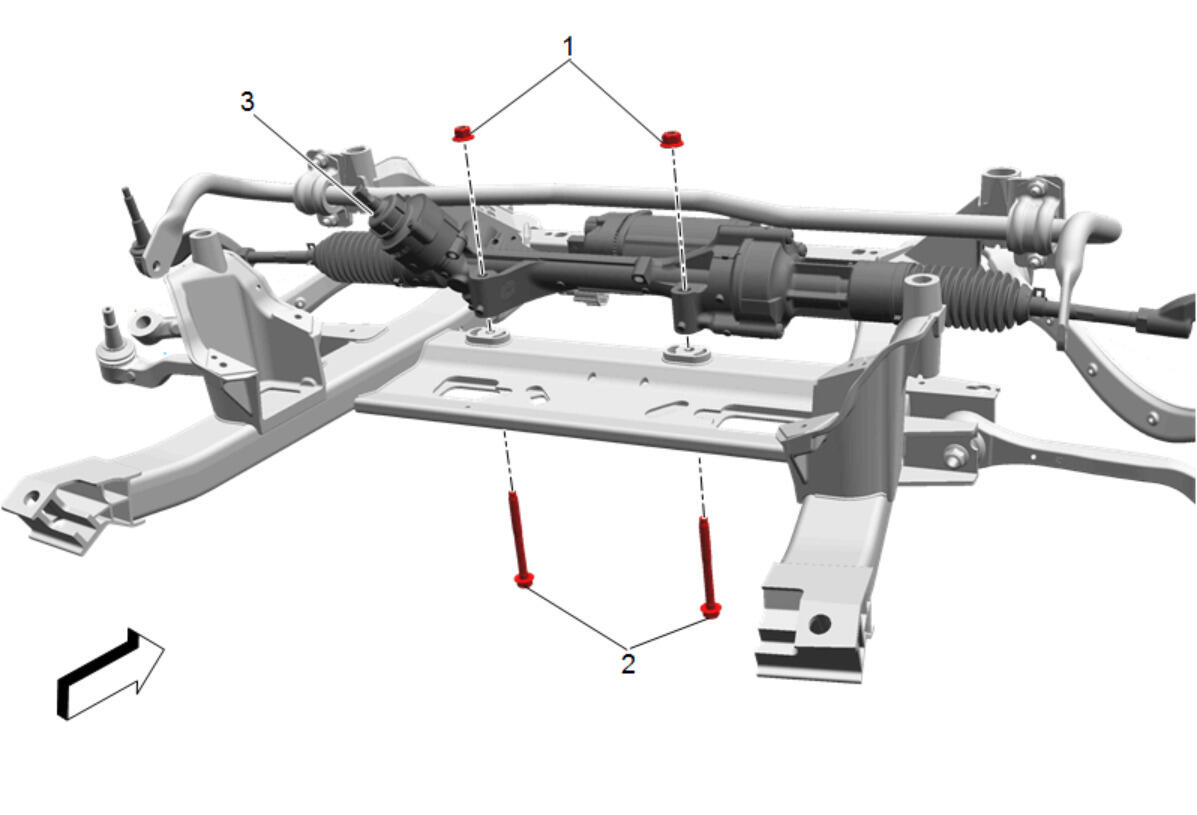

Electric Belt Drive Rack and Pinion Steering Gear (3) - Install
- Steering Gear Bolt (2) - Install NEW [2x]
- Steering Gear Nut (1) - Install and hand tighten [2x]
- Drivetrain and Front Suspension Cradle - Install - Drivetrain and Front Suspension Cradle Removal and Installation (AWD) , or Drivetrain and Front Suspension Cradle Removal and Installation (RWD) , or Drivetrain and Front Suspension Cradle Removal and Installation (Blackwing)
- CAUTION:
Refer to Fastener Caution .
Steering Gear Bolt (1) - Tighten [2x] - Fastener Specifications
- Install the front tire and wheel assemblies. Tire and Wheel Removal and Installation
- Program the power steering control module. Control Module References
- Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
- Perform the following so the vehicle software relearns the steering center position:
- Raise the front wheels off the ground.
- Start the engine.
- Rotate steering wheel to the left lock position and hold tightly for 4 seconds.
- Rotate steering wheel to the right lock position and hold tightly for 4 seconds.
- Repeat steps 9.3 and 9.4.
- Lower the vehicle.
CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
