Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Measure the wheel alignment. Wheel Alignment Measurement
  3. Support the rear suspension lower control arm with a appropriate jack stand.

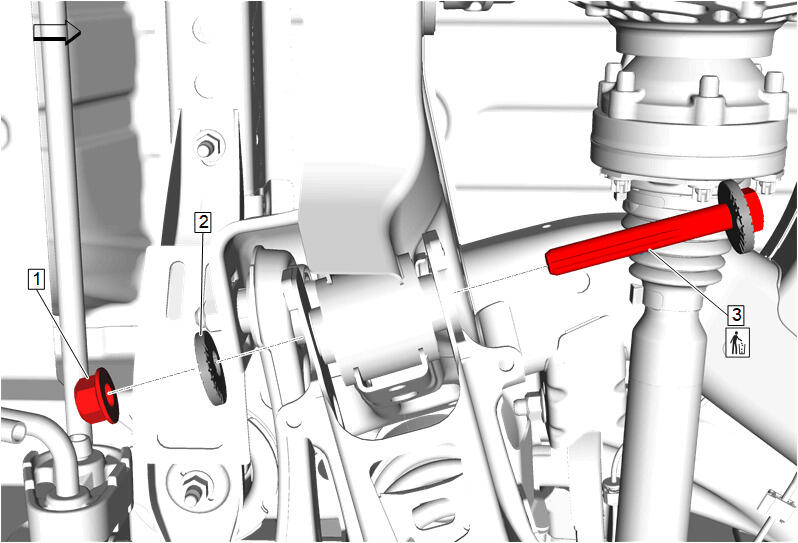

  4. GM5337546Courtesy of GENERAL MOTORS COMPANY

    Rear Suspension Lower Control Arm Inner Nut (1) - Remove

  5. Rear Suspension Lower Control Arm Inner Washer (2) - Remove
  6. Rear Suspension Lower Control Arm Inner Bolt (3) - Remove and DISCARD
