Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool.

WARNING:

Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury.

  1. Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection
  2. GM5335764Courtesy of GENERAL MOTORS COMPANY

    Oil Level Indicator (1) - Remove

    GM5136547Courtesy of GENERAL MOTORS COMPANY
  3. Electrical Connector (1) @ Oil Level Indicator (3) - Unclip
  4. Oil Level Indicator Tube Bracket Bolt (2) - Remove
  5. GM5068106Courtesy of GENERAL MOTORS COMPANY

    Oil Level Indicator Tube (1) - Remove

  6. Oil Level Indicator Tube Seal (2) - Remove and DISCARD
  7. Drain the cooling system. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill) , or Cooling System Draining and Filling (LSY with V03 Static Fill) , or Cooling System Draining and Filling (L3B Static Fill) , or Cooling System Draining and Filling (L3B GE 47716) , or Cooling System Draining and Filling (LSY with V03 GE 47716) , or Cooling System Draining and Filling (LF4 Static Fill) , or Cooling System Draining and Filling (LF4 GE 47716)
  8. Drain the engine oil. Engine Oil and Oil Filter Replacement (RWD) , or Engine Oil and Oil Filter Replacement (AWD)
  9. Place a drain pan under the vehicle.

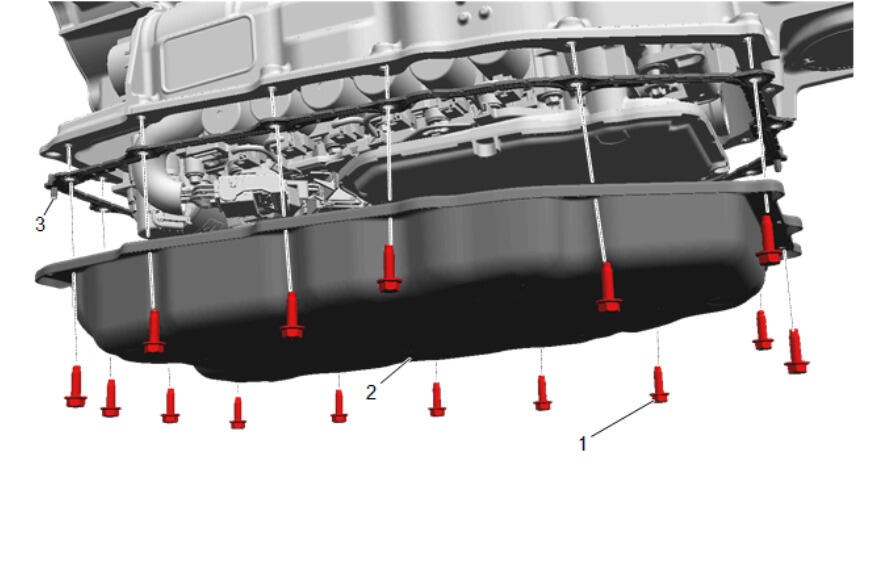

  10. GM5441320Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission Fluid Pan Bolt (1) - Remove [15x]

  11. Automatic Transmission Fluid Pan (2) - Remove
  12. NOTE:

    The fluid pan gasket is reusable. Inspect the gasket to determine if it may be reused. If the gasket is stuck to the case or pan, it should be replaced.

  13. Automatic Transmission Fluid Pan Gasket (3) - Remove
  14. GM5441317Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Pull the fluid filter assembly straight out to avoid damage. Do not bend or twist the filter neck.

    Automatic Transmission Fluid Filter (1) - Remove

  15. Automatic Transmission Fluid Filter (1) - Install
  16. Automatic Transmission Fluid Pan Gasket (3) - Install
  17. Automatic Transmission Fluid Pan (2) - Install
  18. CAUTION:

    Refer to Fastener Caution .

  19. Automatic Transmission Fluid Pan Bolt (1) - Install and tighten in sequence [15x] - Fastener Specifications
  20. Remove drain pan from under vehicle.
  21. GM5325063Courtesy of GENERAL MOTORS COMPANY

    Windshield Wiper Arm (3) - Remove [2x]

    1. Using the appropriate trim tool, remove the windshield wiper arm finish cap (1) from the windshield wiper arm (3).
    2. Windshield Wiper Arm Nut (2) - Remove
    3. Grasp the outer end of the windshield wiper arm (3) and gently rock the arm back and forth to remove it from the windshield wiper transmission pivot shaft.
  22. GM5417116Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel Extension (1) - Remove [2x]

    1. Apply two layers of masking tape around the top edge of the service part to prevent paint damage.
    2. Using a suitable plastic trim tool, carefully release the air inlet grille panel extension clips.
    3. Remove the air inlet grille panel extension (1) from the air inlet grille panel and upper front fender.
  23. GM5421986Courtesy of GENERAL MOTORS COMPANY

    Remove the 2 hood rear outer air inlet seal retainer (1) from the left and right side.

  24. Remove the hood rear outer air inlet seal (2) from the left and right side.
  25. GM5421990Courtesy of GENERAL MOTORS COMPANY

    Remove the 2 front compartment side sight shield retainer (1) from the left and right side.

  26. Remove the front compartment side sight shield (2) from the left and right side.
  27. GM5417442Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel Retainer (1) - Remove [6x]

  28. Air Inlet Grille Panel (2) - Remove
    1. Disconnect the windshield washer nozzle hose from the windshield washer pump hose.
    2. Lift the front edge of the air inlet grille panel (2) and slide the panel forward from both hood hinges to remove.
  29. GM5420286Courtesy of GENERAL MOTORS COMPANY

    Windshield Wiper System Module Shield (1) - Remove

  30. GM5420344Courtesy of GENERAL MOTORS COMPANY

    Disconnect the windshield wiper motor electrical connector.

  31. Windshield Wiper System Module Bolt (1) - Remove [2x]
  32. Slide the windshield wiper system module (2) inboard to release the grommet from the plenum and remove the windshield wiper system module (2) from the vehicle.
  33. GM5499581Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Deflector Water Deflector Retainer (1) - Remove [2x]

  34. GM5499583Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Deflector Water Deflector (1) - Remove

  35. GM5422039Courtesy of GENERAL MOTORS COMPANY

    Plenum Front Panel Nut (1) - Remove [3x]

  36. Plenum Front Panel Bolt (2) - Remove [3x]
  37. Disconnect the forward lamp wiring harness extension retainers as necessary.
  38. {If equipped} Pull the forward lamp wiring harness extension (3) out from the plenum front panel.
  39. GM5422041Courtesy of GENERAL MOTORS COMPANY

    Plenum Front Panel Bolt (1) - Remove [4x]

  40. Plenum Front Panel Nut (2) - Remove [3x]
  41. Pull the forward lamp wiring harness extension (3) out from the plenum front panel.
  42. GM5422044Courtesy of GENERAL MOTORS COMPANY

    Plenum Front Panel (1) - Remove

  43. GM5335087Courtesy of GENERAL MOTORS COMPANY

    Lift up on the front of the intake manifold cover (1).

  44. GM5335089Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Cover (1) - Remove

  45. GM5311852Courtesy of GENERAL MOTORS COMPANY

    Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type

  46. Radiator Surge Tank Inlet Hose (2) @ Engine Coolant Heater Exhaust Pipe - Remove
  47. GM5312791Courtesy of GENERAL MOTORS COMPANY

    Heater Inlet Hose Retainer (1) - Disengage

  48. Heater Inlet Hose (2) @ Engine Coolant Heater Exhaust Pipe - Remove
  49. GM5336345Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Unclip [5x]

  50. Engine Wiring Harness (2) - Reposition away
  51. GM5336351Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Conduit Bracket Bolt (1) - Remove

  52. Engine Wiring Harness Conduit Nut (2) - Remove
  53. Engine Wiring Harness Bracket (3) - Remove
  54. GM5402881Courtesy of GENERAL MOTORS COMPANY

    Engine Coolant Air Bleed Pipe Bolt (1) - Remove [2x]

  55. Raise and support the vehicle. Lifting and Jacking the Vehicle
  56. GM5395705Courtesy of GENERAL MOTORS COMPANY

    Rear Tire Front Air Deflector Bolt (1) - Remove [2x]

  57. Rear Tire Front Air Deflector- Left Side (2) - Remove
  58. GM5400553Courtesy of GENERAL MOTORS COMPANY

    Rear Wheelhouse Liner Screw (1) - Remove

  59. Underbody Rear Air Deflector Plastic Nut (2) - Remove [3x]
  60. Underbody Rear Air Deflector Bolt (3) - Remove [3x]
  61. Underbody Rear Air Deflector Nut (4) - Remove [2x]
  62. Underbody Rear Air Deflector- Left Side (5) - Remove
  63. GM5471237Courtesy of GENERAL MOTORS COMPANY

    Rear Tire Front Air Deflector Bolt (2) - Remove [2x]

  64. Rear Tire Front Air Deflector- Right Side (1) - Remove
  65. GM5400642Courtesy of GENERAL MOTORS COMPANY

    Rear Wheelhouse Liner Screw (1) - Remove

  66. Underbody Rear Air Deflector Bolt (2) - Remove [3x]
  67. Underbody Rear Air Deflector Plastic Nut (3) - Remove [3x]
  68. Underbody Rear Air Deflector Nut (4) - Remove [2x]
  69. Underbody Rear Air Deflector- Right Side (5) - Remove
  70. GM5411943Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission Fluid Cooling Heat Exchanger Inlet Hose Clamp (1) @ Automatic Transmission Fluid Cooling Exchanger - Disengage - Hose Clamp Replacement Guidelines - Spring Type

  71. Automatic Transmission Fluid Cooling Heat Exchanger Inlet Hose (2) @ Automatic Transmission Fluid Cooling Exchanger - Remove
  72. GM5411944Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission Fluid Cooling Heat Exchanger Outlet Hose Clamp (1) @ Automatic Transmission Fluid Cooling Exchanger - Disengage - Hose Clamp Replacement Guidelines - Spring Type

  73. Automatic Transmission Fluid Cooling Heat Exchanger Outlet Hose (2) @ Automatic Transmission Fluid Cooling Exchanger - Remove
  74. GM5411932Courtesy of GENERAL MOTORS COMPANY

    Transmission Fluid Cooler Pipe Nut (1) - Remove [2x]

  75. Transmission Fluid Cooler Pipe Bolt (2) - Remove
  76. NOTE:

    Cap the fittings and plug the holes when removing the transmission fluid cooler pipes.

  77. Transmission Fluid Cooler Inlet and Outlet Pipe (3) - Remove
  78. GM5411934Courtesy of GENERAL MOTORS COMPANY

    Transmission Fluid Cooler Pipe Seal (1) - Remove and DISCARD [2x]

  79. Transmission Fluid Cooler Seal (2) - Remove and DISCARD
  80. GM5411958Courtesy of GENERAL MOTORS COMPANY

    Transmission Fluid Auxiliary Cooler Bolt (1) - Remove [2x]

  81. GM5415576Courtesy of GENERAL MOTORS COMPANY

    Transmission Fluid Auxiliary Cooler Bracket Nut (1) - Remove

  82. Automatic Transmission Fluid Cooling Exchanger (2) - Remove
  83. GM5318334Courtesy of GENERAL MOTORS COMPANY

    Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type

  84. Engine Coolant Air Bleed Pipe (2) @ Engine Coolant Air Bleed Hose - Remove
  85. Lower the vehicle.
  86. GM5310575Courtesy of GENERAL MOTORS COMPANY

    Disconnect and reposition the electrical connectors as necessary.

  87. CAUTION:

    The use of excessive force may damage the threads in the exhaust manifold/pipe.

    NOTE:
    • The heated oxygen sensor in-line connector and louvered end MUST be kept clear of all grease, dirt, and other contaminants. Do NOT use cleaning solvents of any type. Do NOT drop or roughly handle the sensor.
    • The heated oxygen sensor MAY be difficult to remove when the engine temperature is less than 48°C (120°F).
  88. Using the J-39194  Heated Oxygen Sensor Remover/Installer, remove the heated oxygen sensor (1).
  89. GM5318324Courtesy of GENERAL MOTORS COMPANY

    Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type

  90. Engine Coolant Air Bleed Pipe (2) @ Auxiliary Water Pump Inlet Pipe - Remove
  91. Remove the transmission vent hose retainer from the engine coolant air bleed pipe.
  92. GM5318618Courtesy of GENERAL MOTORS COMPANY

    Engine Coolant Air Bleed Pipe (1) - Remove

  93. GM5571392Courtesy of GENERAL MOTORS COMPANY

    Disconnect and reposition heated oxygen sensor electrical connector (1).

  94. GM5309985Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Heat Shield Bolt (1) - Remove [3x]

  95. GM5309997Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Heat Shield (1) - Remove

  96. GM5310138Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Heat Shield Bolt (1) - Remove [2x]

  97. Catalytic Converter Heat Shield Nut (2) - Remove
  98. GM5310178Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Heat Shield (1) - Remove

  99. GM5310863Courtesy of GENERAL MOTORS COMPANY

    Exhaust Pipe Clamp (1) - Loosen

  100. GM5310876Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Brace Bolt (1) - Remove

  101. Disconnect and reposition electrical connectors as necessary.
  102. Raise the vehicle.
  103. GM5400756Courtesy of GENERAL MOTORS COMPANY

    Floor Panel Number 4 Cross Bar Reinforcement Bolt (1) - Remove [6x]

  104. Floor Panel Reinforcement (2) - Remove
  105. GM5309188Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Nut (1) - Remove [2x]

  106. GM5309202Courtesy of GENERAL MOTORS COMPANY

    Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator-Left Side (2) - Separate

  107. Exhaust Muffler (1) @ Exhaust Rear Muffler Insulator-Left Side (3) - Separate
  108. GM5309211Courtesy of GENERAL MOTORS COMPANY

    Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator-Right Side (2) - Separate

  109. Exhaust Muffler (1) @ Exhaust Rear Muffler Insulator-Right Side (3) - Separate
  110. GM5309214Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, remove the exhaust system (1).

  111. Catalytic Converter Gasket (2) - Remove and DISCARD
  112. GM5399464Courtesy of GENERAL MOTORS COMPANY

    Front Crossmember Brace Nut (1) - Remove [4x]

  113. Front Crossmember Brace (2) - Remove
  114. GM5310881Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Brace Bolt (1) - Remove

  115. GM5310892Courtesy of GENERAL MOTORS COMPANY

    Warm Up Three-Way Catalytic Converter (1) - Remove

  116. Catalytic Converter Gasket (2) - Remove and DISCARD
  117. GM5393690Courtesy of GENERAL MOTORS COMPANY

    Exhaust Pipe Clamp (1) - Remove and DISCARD

  118. GM5309833Courtesy of GENERAL MOTORS COMPANY

    Exhaust Heat Shield Bolt (1) - Remove [6x]

  119. Exhaust Intermediate Underbody Heat Shield (2) - Remove
  120. GM5471168Courtesy of GENERAL MOTORS COMPANY

    Floor Panel Number 2 Cross Bar Reinforcement Bolt (2) - Remove [4x]

  121. Floor Panel Number 2 Cross Bar Reinforcement (1) - Remove
  122. GM5507958Courtesy of GENERAL MOTORS COMPANY

    Propeller Shaft Hub Clamp (1) - Remove and DISCARD

  123. GM5317835Courtesy of GENERAL MOTORS COMPANY

    Mark (2) the relationship of the propeller shaft to the rear differential flange using a paint pen.

  124. CAUTION:

    When removing the propeller shaft, do not remove the propeller shaft coupler from the propeller shaft assembly. The only bolts that should be removed are those that mount each coupler to the transmission output flange, and to the rear drive axle input flange. Failure to properly remove the propeller shaft assembly may cause coupler damage, resulting in necessary replacement of the entire propeller shaft.

  125. Rear Propeller Shaft Nut (3) - Remove [3x]
  126. Rear Propeller Shaft Bolt (1) - Remove [3x]
  127. Support and secure the propeller shaft to a suitable hydraulic jack stand.
  128. GM5317838Courtesy of GENERAL MOTORS COMPANY

    Propeller Shaft Bearing Support Bolt (1) - Remove [2x]

  129. GM5317841Courtesy of GENERAL MOTORS COMPANY

    Propeller Shaft (1) - Remove

  130. GM5123297Courtesy of GENERAL MOTORS COMPANY

    Hose Clamp (1) - Disengage [2x] - Hose Clamp Replacement Guidelines - Spring Type

  131. Engine Oil Cooler Coolant Inlet Hose (2) @ Engine Oil Cooler - Remove
  132. Thermostat Bypass Hose (3) @ Engine Oil Cooler - Remove
  133. GM5123304Courtesy of GENERAL MOTORS COMPANY

    Engine Oil Cooler Bolt (1) - Remove [4x]

  134. Engine Oil Cooler (2) - Remove
  135. Engine Oil Cooler Seal (3) - Remove and DISCARD [2x]
  136. Reposition the engine oil cooler coolant inlet hose and the thermostat bypass hose aside.
  137. GM5460874Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable Nut (1) @ Starter Stud - Remove

  138. Engine Wiring Harness Retainer (2) - Disengage [2x]
  139. Auxiliary Generator Battery Jumper Cable (3) - Remove
  140. GM5460935Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Disconnect

  141. GM5460947Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable Nut (1) @ Starter Solenoid - Remove

  142. Auxiliary Generator Battery Jumper Cable (2) - Remove
  143. GM5319715Courtesy of GENERAL MOTORS COMPANY

    Starter Stud (1) - Remove

  144. Starter Bolt (2) - Remove [2x]
  145. Starter (3) - Remove
  146. Remove the front tire and wheel assemblies. Tire and Wheel Removal and Installation
  147. GM5493281Courtesy of GENERAL MOTORS COMPANY

    Front Wheelhouse Liner Bolt (1) - Remove

  148. Engine Front Splash Shield Retainer (2) - Remove
  149. Engine Front Splash Shield Bolt (3) - Remove
  150. GM5493282Courtesy of GENERAL MOTORS COMPANY

    Front Wheelhouse Liner Bolt (1) - Remove

  151. Engine Front Splash Shield Retainer (2) - Remove
  152. Engine Front Splash Shield Bolt (3) - Remove
  153. GM5493285Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Air Deflector Bolt (1) - Remove [6x]

  154. Front Compartment Air Deflector (2) - Remove
  155. GM5342773Courtesy of GENERAL MOTORS COMPANY

    Repeat the following steps for all torque converter bolts (1):

    1. Rotate the crankshaft balancer bolt clockwise ONLY, to align the torque converter bolt with the starter opening.
    2. Torque Converter Bolt (1) - Remove [6x]
  156. GM5471853Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission Range Selector Lever Cable Bolt (1) - Remove

  157. Remove the automatic transmission range selector lever cable (2) from the automatic transmission range selector lever cable bracket.
  158. GM5471847Courtesy of GENERAL MOTORS COMPANY

    Slide the automatic transmission range selector locking ring (1) in the direction of the arrow to access the automatic transmission range selector cable retainer (2).

  159. Using a flat bladed tool, release the automatic transmission range selector cable retainer (2) then remove the automatic transmission range selector cable (3) from the automatic transmission range selector lever (4).
  160. GM5333497Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector. (1)

  161. Release the retainers. (2)
  162. GM5518959Courtesy of GENERAL MOTORS COMPANY

    Disconnect the transmission vent hose retainers (1) and (2).

  163. Transmission Vent Hose (3) - Remove
  164. GM5508846Courtesy of GENERAL MOTORS COMPANY

    Transmission Bolt (2) - Remove [2x]

  165. Transmission Stud (1) - Remove
  166. GM5508848Courtesy of GENERAL MOTORS COMPANY

    Transmission Bolt (2) - Remove [4x]

  167. Transmission Stud (1) - Remove [2x]
  168. Support the transmission with a suitable jack.
  169. Strap transmission to transmission jack.
  170. GM5427472Courtesy of GENERAL MOTORS COMPANY

    Transmission Mount Bracket Bolt (1) - Remove [4x]

  171. GM5427478Courtesy of GENERAL MOTORS COMPANY

    Transmission Mount Bolt (1) - Remove [2x]

  172. Transmission Mount (2) - Remove
  173. Pull the transmission straight back.
  174. Install the J-21366  strap onto the transmission bell housing to retain the torque converter.
  175. GM5508842Courtesy of GENERAL MOTORS COMPANY

    Remove the transmission. (1)

  176. GM3977958Courtesy of GENERAL MOTORS COMPANY

    Install the DT-48989  Holding Fixture (2) onto the transmission.

  177. Install the transmission (4) with DT-48989  Holding Fixture (2) onto the DT-03289-20  Holding Fixture Base Assembly (1)
  178. Rotate the transmission so that the converter housing is up then secure it with the locking pin.
  179. Remove the DT-21366  Converter Holding Strap installed during transmission removal.
  180. Torque Converter (3) - Remove
  181. GM5472707Courtesy of GENERAL MOTORS COMPANY

    Remove the two automatic transmission range selector lever cable bracket bolts (1).

  182. Remove the automatic transmission range selector lever cable bracket (2).
