Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

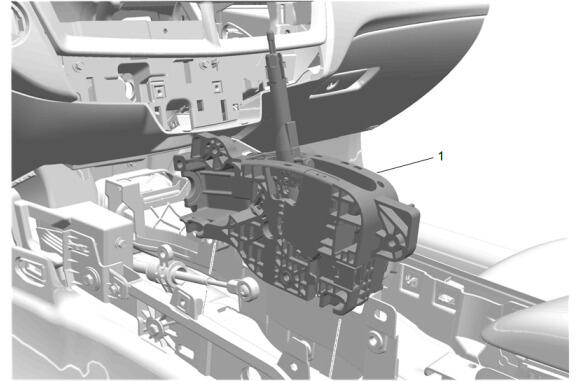

  1. GM6054775Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission Control (1) - Install

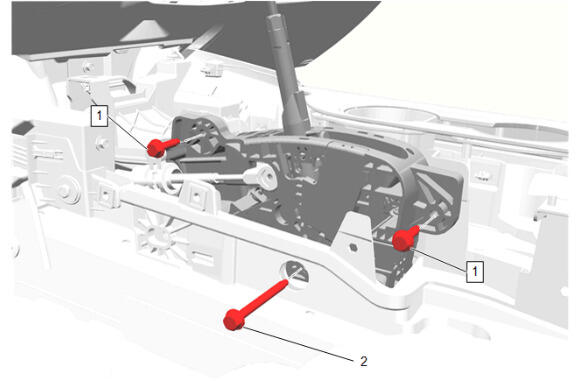

  2. GM5504072Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Automatic Transmission Control Bolt (2) - Install and tighten - Fastener Specifications

  3. Automatic Transmission Control Bolt (1) - Install and tighten [2x] - Fastener Specifications

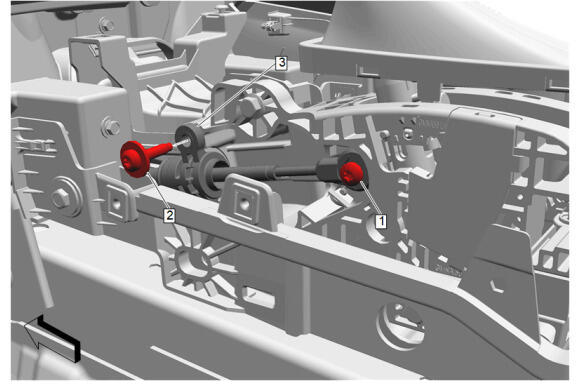

  4. GM5504073Courtesy of GENERAL MOTORS COMPANY

    Engage the threads of the automatic transmission range selector lever cable bolt (1) into the transmission control and tighten. Fastener Specifications

  5. Install and tighten the automatic transmission range selector lever cable to automatic transmission control bolt (2). Fastener Specifications
  6. GM5487916Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Trim Plate (1) - Install

  7. GM5487915Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Trim Plate Bolt (4) - Install and tighten [2x] - Fastener Specifications

  8. Connect the electrical connector (3).
  9. Insert the transmission control lever boot and knob (2) into the front floor console trim plate.
  10. Front Floor Console Variable 1 Liner (1) - Install
  11. GM5644700Courtesy of GENERAL MOTORS COMPANY

    Install the automatic transmission control lever knob (1) then press down to engage the retainer.

  12. Carefully pull upward on the automatic transmission control lever knob (1) to ensure that the retainer is engaged.

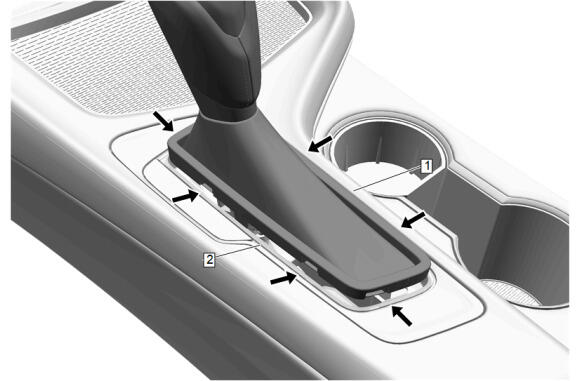

  13. GM5644699Courtesy of GENERAL MOTORS COMPANY

    Position the automatic transmission control lever knob boot (1) into the front floor console trim plate (2) and press down in the area of the arrows to install the automatic transmission control lever knob boot.

  14. Shift the transmission through each gear and ensure that the shift lever knob operates properly.
  15. GM5482681Courtesy of GENERAL MOTORS COMPANY

    Slide the front floor console (1) back into the instrument panel.

  16. GM5482680Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt (1) - Install and tighten [6x] - Fastener Specifications

  17. Front Floor Console Bracket Bolt (2) - Install and tighten [2x] - Fastener Specifications
  18. GM5479956Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (1) - Install

  19. Return the seat to its original position.
  20. GM5479957Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Left Side (1) - Install

  21. Return the seat to its original position.
