Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Automatic Transmission Fluid Filter (1) - Remove - Automatic Transmission Fluid, Fluid Pan and/or Filter Replacement

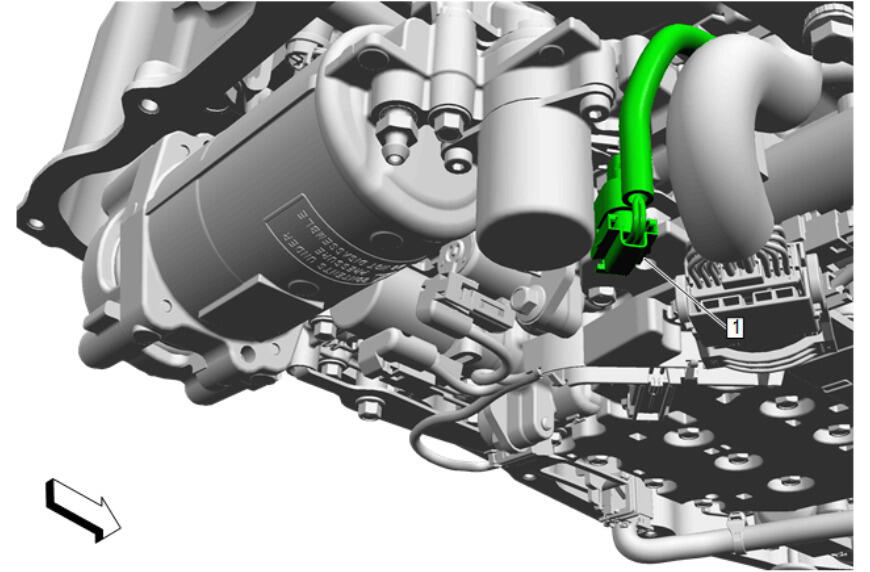

Disconnect the automatic transmission auxiliary fluid accumulator solenoid electrical connector (1).
- WARNING:
The automatic transmission fluid accumulator may be pressurized greater than 120 psi (827 kpa) and fluid may be hot. When servicing accumulator, key must be OFF for a minimum of 10 minutes. Do not open bleeder screw until instructed to do so or personal injury may result.

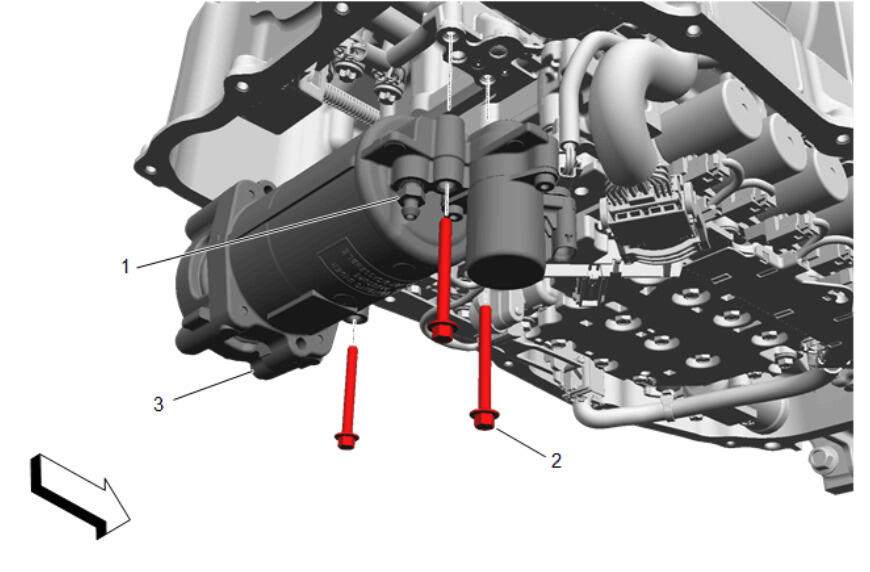

Securely attach a hose from the automatic transmission auxiliary fluid accumulator bleeder valve (1) into an approved container.
- Slowly loosen (1) until pressure begins to release.
- Allow all pressure and fluid to be released from the automatic transmission auxiliary fluid accumulator.
- Remove the hose from the automatic transmission auxiliary fluid accumulator bleeder valve (1).
- Control Valve Lower Body Bolt (2) - Remove [3x]
- Automatic Transmission Auxiliary Fluid Accumulator (3) - Remove
