Installation Procedure

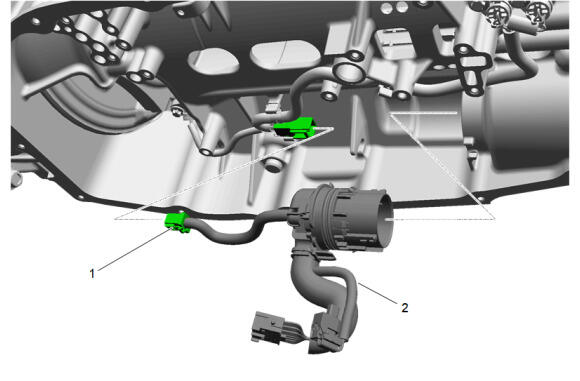

Automatic Transmission Wiring Harness (2) - Install
- Connect the electrical connector (1).

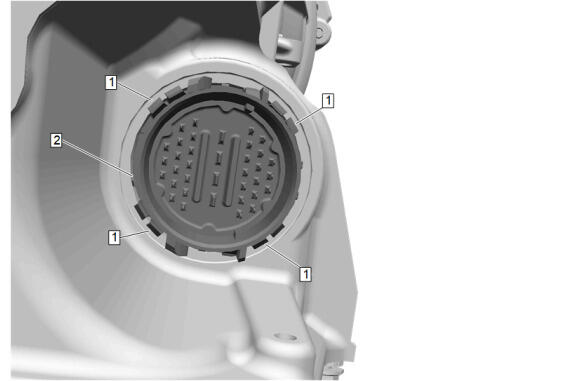

Press the automatic transmission wiring harness into the transmission case until the four retaining tabs (1) around the main connector (2) lock into place.

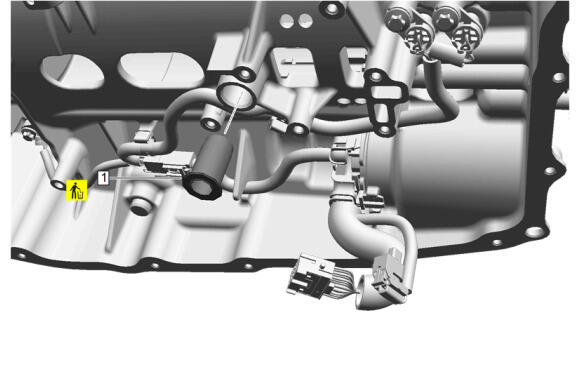

Clutch Housing Fluid Passage Seal (1) - Install NEW

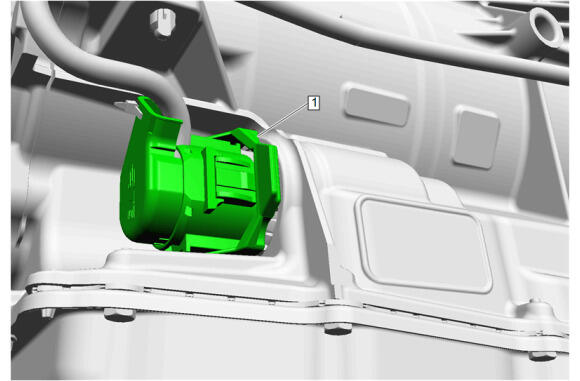

Connect the transmission wiring harness electrical connector (1).
- NOTE:
Due to transmission fluid pump chain tension, the control valve assembly and fluid pump sprocket must be installed simultaneously.
Install the transmission fluid pump driven sprocket (1) onto the chain then position the sprocket and control valve body onto the chain.
- CAUTION:
Use care when handling the control valve body assembly. If dropped, damage to the control solenoid valve body assembly internal components may result.

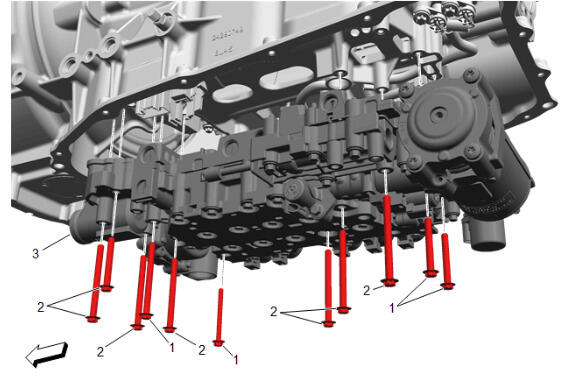

Control Valve Body (3) - Install
- Install and hand tighten the 7 M6 x 68 control valve solenoid body bolts (2).
- Install and hand tighten the 4 M6 x 45 control valve solenoid body bolts (1).
- Tighten the control valve solenoid bolts (1) and (2) in sequence. Fastener Specifications
Using a suitable pry tool, lock the transmission fluid pump driven sprocket retainer (2).
Install the transmission control wiring harness (4) then connect the electrical connectors as needed.
- Install the transmission control wiring harness retainer (5).
Connect the manual valve (1) to the manual shift shaft position switch assembly linkage (2).
- Return the manual valve spring (2) to it's correct position.
Manual Shift Detent Lever Spring (2) - Install
- Manual Shift Detent Lever Spring Bolt (1) - Install and tighten - Fastener Specifications

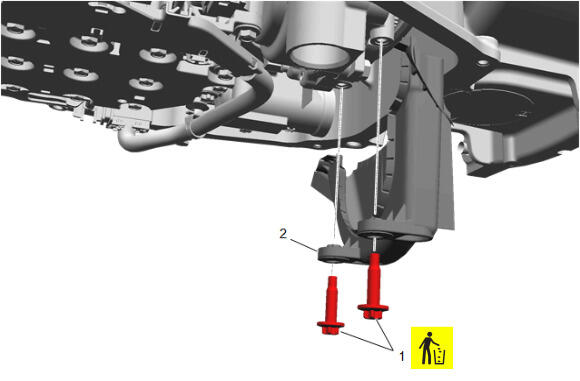

Automatic Transmission Fluid Baffle (2) - Install
- Automatic Transmission Fluid Baffle Bolt (1) - Install NEW and tighten [2x] - Fastener Specifications

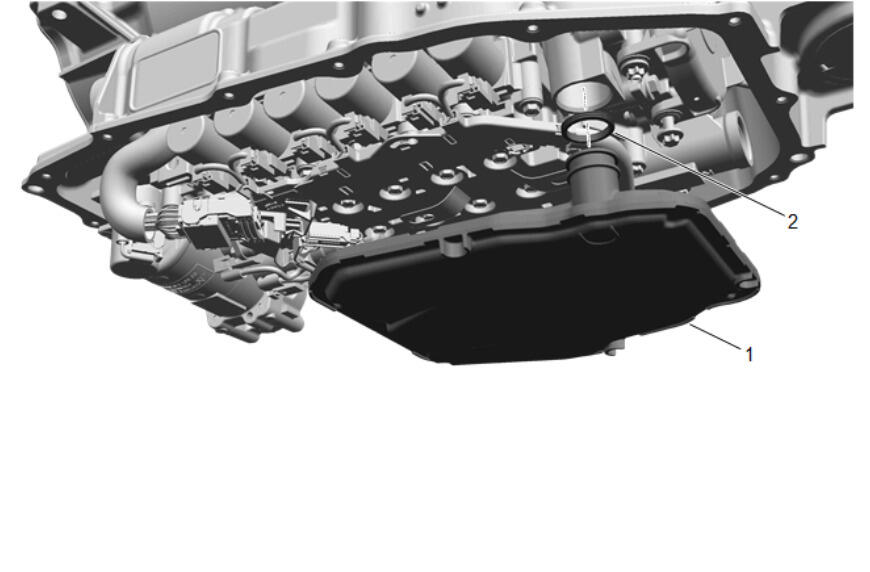

Automatic Transmission Fluid Filter (1) - Install - Automatic Transmission Fluid, Fluid Pan and/or Filter Replacement
- Reprogram the transmission. Q77 Transmission Control Solenoid Valve Characterization Programming (8L45) , or Q77 Transmission Control Solenoid Valve Characterization Programming (10L60)
- Pressure regulating solenoid replacement
- Valve body repair or replacement
- Any service/repair in response to a shift quality concern
- Any internal transmission service, repair, overhaul, or replacement
- Torque converter replacement
- Transmission control module replacement
- Transmission assembly replacement
- Perform the service fast learn procedure. Transmission Service Fast Learn Procedure
Refer to Fastener Caution .
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
The Service Fast Learn procedure must be performed when one of the following repairs have been made to the vehicle. Failure to perform the procedure after one of the following repairs may result in poor transmission performance, as well as transmission DTCs being set:
The service fast learn procedure must be performed when any of the following repairs has been made to the transmission.
