Removal Procedure
- Remove the oil fill cap.
Intake Manifold Cover Bolt (1) - Remove [2x]
- Lift up on the front of the intake manifold cover (2).
Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Remove
- Raise and support the vehicle. Lifting and Jacking the Vehicle
Front Bumper Fascia Center Air Deflector Screw (1) - Remove [10x]
Front Bumper Fascia Center Air Deflector Screw (1) - Remove [6x]
- Front Bumper Fascia Center Air Deflector Bolt (2) - Remove [5x]
- Front Bumper Fascia Center Air Deflector Retainer (3) - Remove [2x]
Pull the front bumper fascia center air deflector (1) rearwards and downwards from the front bumper fascia.
Radiator Air Lower Seal Retainer (1) - Remove [6x]
- Radiator Air Lower Baffle Retainer (2) - Remove
Radiator Air Lower Baffle (1) - Remove
Radiator Air Front Lower Baffle Retainer (1) - Remove [3x]
Radiator Air Front Lower Baffle (1) - Remove
Radiator Air Seal Retainer (1) - Remove [2x]
- Lower the vehicle.
Wiring Harness Retainer (1) - Remove
- Radiator Upper Bracket Bolt (2) - Remove [2x]
- Radiator Upper Bracket (3) - Remove
Wiring Harness Retainer (1) @ Air Cleaner Assembly - Remove [3x]
- Positive Crankcase Ventilation Tube (2) - Disconnect - Plastic Collar Quick Connect Fitting Service
- Evaporative Emission Canister Purge Tube (3) - Disconnect - Plastic Collar Quick Connect Fitting Service
- Electrical Connector (4) - Disconnect [2x]
Air Cleaner Bolt (1) - Remove
- Air Cleaner Outlet Duct Clamp (2) - Loosen
Remove the air cleaner (1) and air cleaner outlet duct (2) as an assembly.
Radiator Air Upper Baffle Retainer (1) - Remove
- Radiator Air Seal Retainer (2) - Remove [2x]
Remove the radiator air side baffle (1) by manipulating it from beneath the radiator air upper baffle and from between the vehicle components.
Radiator Air Upper Baffle Retainer (1) - Remove [7x]
- Radiator Air Upper Baffle (2) - Remove
Retainer Spring (1) - Release
- Charge Air Cooler Inlet Air Tube (2) @ Turbocharger (3) - Remove
Retainer Spring (1) - Release
- Charge Air Cooler Inlet Air Tube (2) @ Charge Air Cooler (3) - Remove

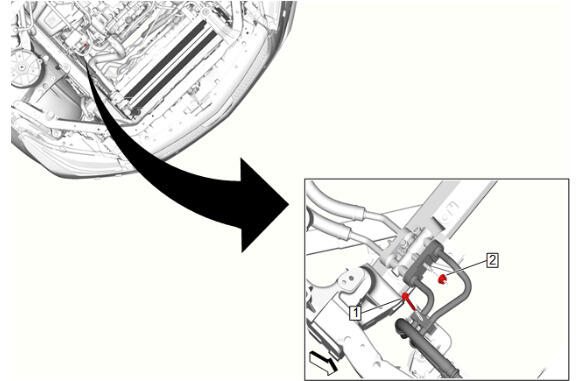

Transmission Fluid Cooler Pipe Clip Bolt (1) - Remove
- Transmission Fluid Cooler Pipe Nut (2) - Remove

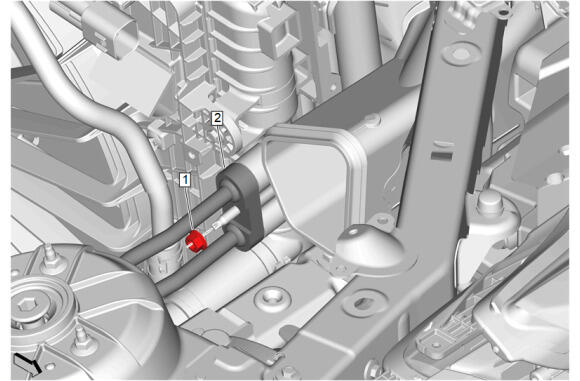

Transmission Fluid Cooler Pipe Nut (1) - Remove
- Transmission Fluid Cooler Inlet and Outlet Pipe (2) - Remove

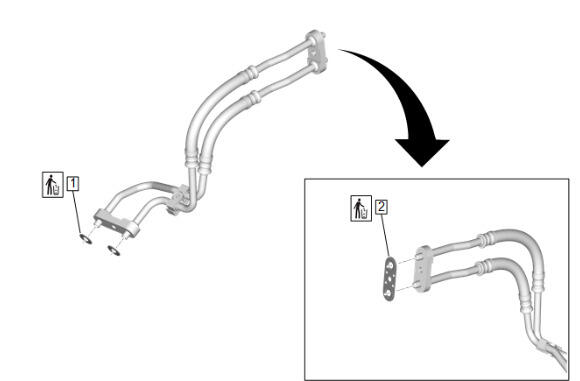

Transmission Fluid Cooler Thermal Bypass Valve Gasket (1) - Remove and DISCARD [2x]
- Transmission Fluid Cooler Seal (2) - Remove and DISCARD
Cap the fittings and plug the holes when removing the transmission fluid cooler pipes.
