Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Transmission Fluid Auxiliary Cooler Inlet Pipe (2) - Install
- Transmission Fluid Auxiliary Cooler Inlet Pipe (2) - Connect
- Retaining Clip (3) - Engage
- Transmission Fluid Cooler Pipe Clip (1) - Engage [2x]
- CAUTION:
Refer to Fastener Caution .

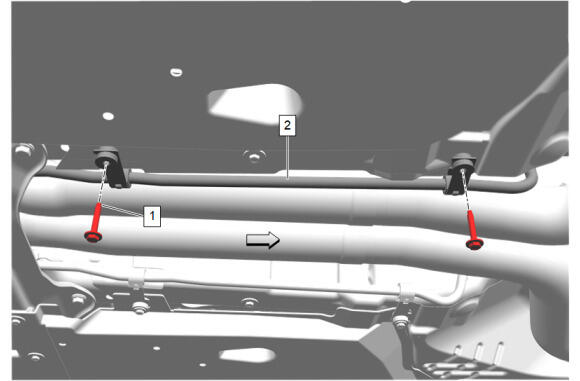

Transmission Fluid Cooler Pipe Clamp Bolt (1) - Install and tighten [2x] - Fastener Specifications
Transmission Fluid Cooler Inlet and Outlet Pipe (2) @ Transmission Fluid Auxiliary Cooler Inlet Pipe (1) - Connect
- Retaining Clip (3) @ Transmission Fluid Auxiliary Cooler Inlet Pipe (1) - Engage
- Lower the vehicle.
- Check the transmission fluid level. Transmission Fluid Level and Condition Check
- Inspect for transmission fluid leaks. Fluid Leak Diagnosis
