Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia (1) - Remove - Front Bumper Fascia Removal and Installation (without Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing CFV, CFZ)
Place a drain pan under the vehicle.
Courtesy of GENERAL MOTORS COMPANY

Transmission Fluid Cooler Pipe Bracket Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Transmission Fluid Cooler Pipe Nut (3) - Remove
Transmission Fluid Cooler Inlet and Outlet Pipe (1) - Disconnect
Transmission Fluid Cooler Seal (2) - Remove and DISCARD
Courtesy of GENERAL MOTORS COMPANY

Transmission Fluid Auxiliary Cooler Bracket Nut (2) - Remove [4x]
Transmission Fluid Auxiliary Cooler (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Front Lower Baffle Retainer (1) - Remove [6x]
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Front Lower Baffle (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Auxiliary Radiator Duct Retainer (1) - Remove [3x]
Courtesy of GENERAL MOTORS COMPANY

Auxiliary Radiator Duct Retainer (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Auxiliary Radiator Front Duct (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

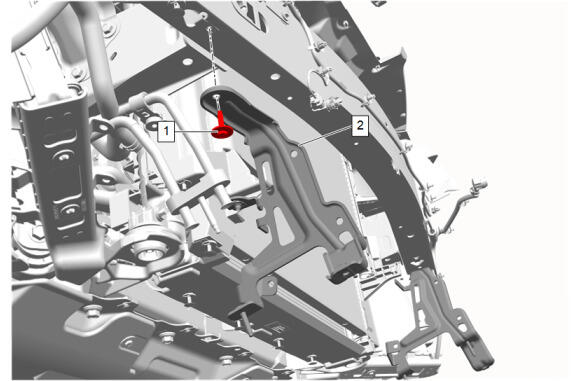

Transmission Fluid Auxiliary Cooler Bracket Bolt (1) - Remove
Transmission Fluid Auxiliary Cooler Bracket (2) - Remove
