Installation Procedure
Install the rear bumper upper fascia (1) to the rear bumper lower fascia.
- Rear Bumper Fascia Bolt (1) - Install and tighten [2x] Fastener Specifications

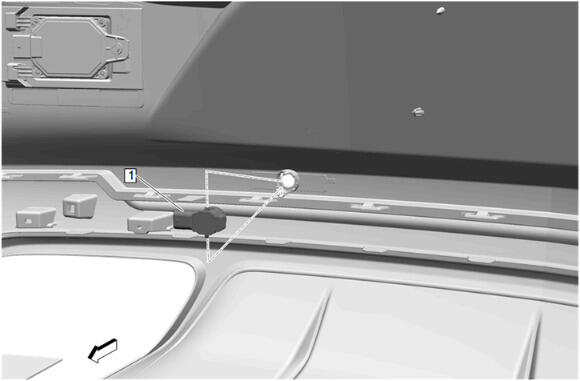

Install the 4 object sensors (1) to the rear bumper upper fascia.

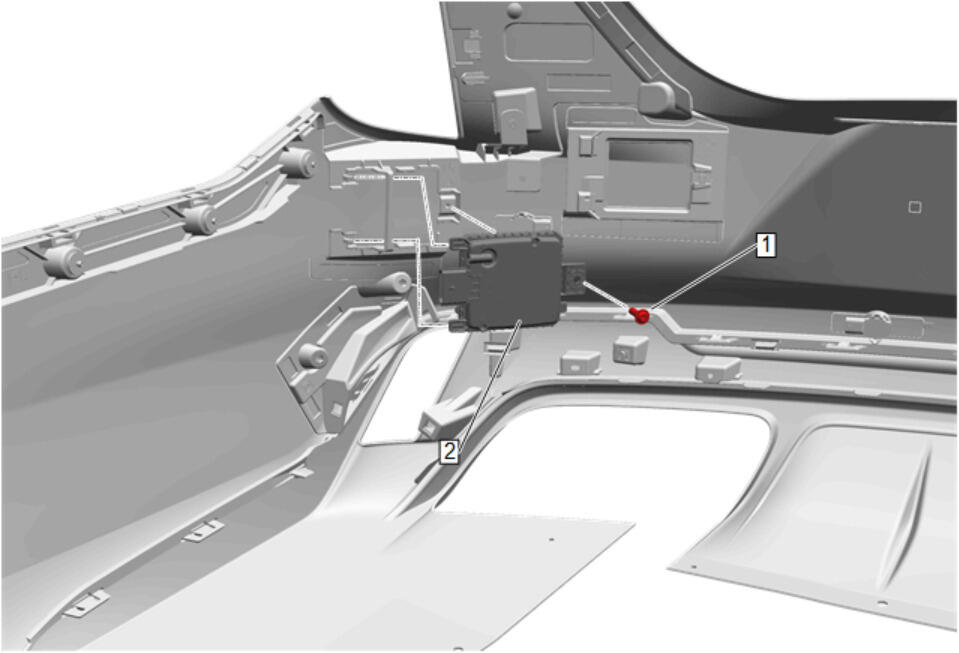

Side Object Sensing Alert Module (2) - Install [2x]
- Install the 2 side object sensing alert module bolts (1) to the right and left side. Fastener Specifications

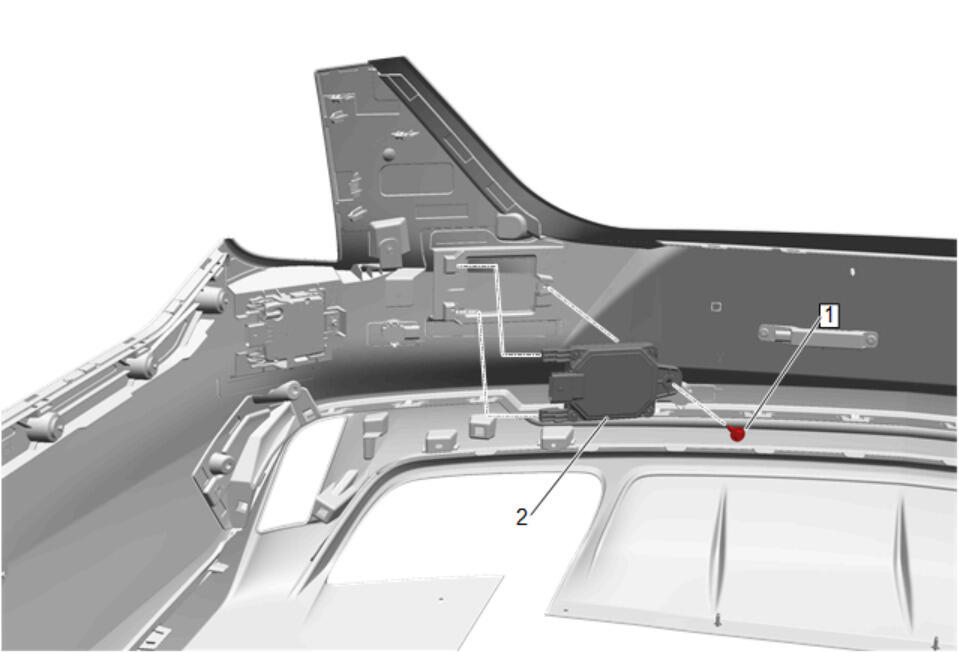

Short Range Radar Sensor (2) - Install [2x]
- Install the 2 short range radar sensor bolts (1) to the left and right side. Fastener Specifications
Install the 2 rear fascia signal lamps to the left and right side (2).
- Install the 3 left and right side rear fascia signal lamp bolts (1). Fastener Specifications
Exhaust Tail Pipe Heat Sleeve (3) - Install [2x]
- Rear Bumper Fascia Bolt (2) - Install and tighten [2x] Fastener Specifications
- Install the 2 exhaust tail pipe heat sleeve rivets to the left and right side of the rear bumper fascia (1).
Rear Bumper Fascia Energy Absorber (3) - Install
- Rear Bumper Fascia Energy Absorber Bolt (2) - Install [2x] Fastener Specifications
- Rear Bumper Fascia Energy Absorber Clip (1) - Install [4x]
- Install the wiring harness.
- Connect the electrical connector from the low frequency rear bumper antenna.
- Connect the rear parking sensor electrical connector
Rear Bumper Fascia (1) - Install - Rear Bumper Fascia Removal and Installation
CAUTION:
Refer to Fastener Caution .
