Installation Procedure

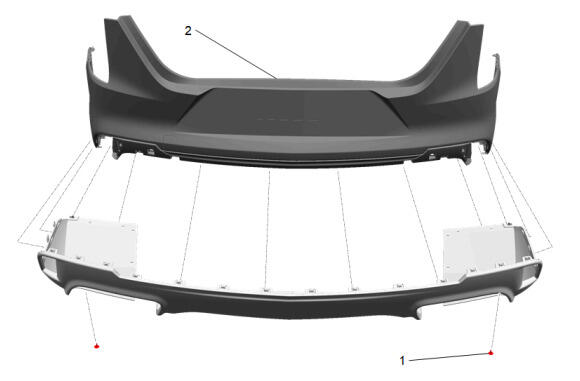

  1. GM5420300Courtesy of GENERAL MOTORS COMPANY

    Install the rear bumper lower fascia (2) to the rear bumper upper fascia.

    2. CAUTION:

    Refer to Fastener Caution .

  2. Rear Bumper Fascia Bolt (1) - Install and tighten [2x] Fastener Specifications

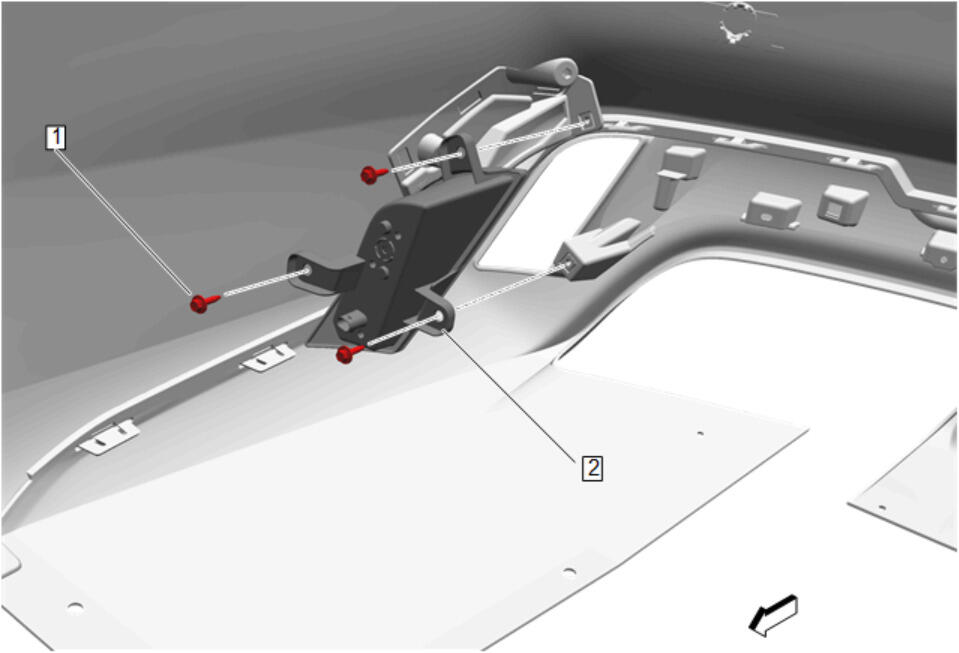

  3. GM5420295Courtesy of GENERAL MOTORS COMPANY

    Install the 2 rear fascia signal lamps to the left and right side (2).

  4. Install the 3 left and right side rear fascia signal lamp bolts (1). Fastener Specifications

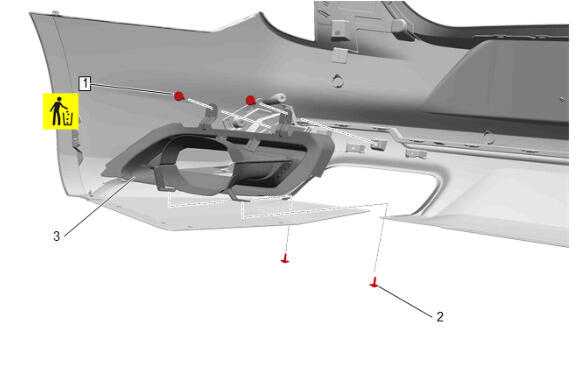

  5. GM5420293Courtesy of GENERAL MOTORS COMPANY

    Exhaust Tail Pipe Heat Sleeve (3) - Install [2x]

  6. Rear Bumper Fascia Bolt (2) - Install and tighten [2x] Fastener Specifications
  7. Install the 2 exhaust tail pipe heat sleeve rivets to the left and right side of the rear bumper fascia (1).

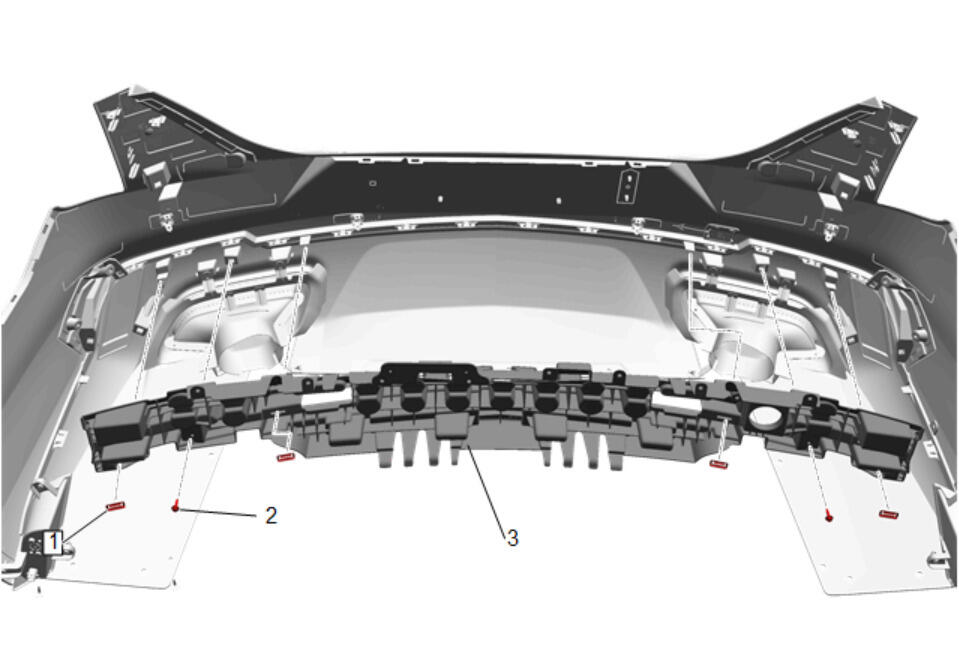

  8. GM5415737Courtesy of GENERAL MOTORS COMPANY

    Rear Bumper Fascia Energy Absorber (3) - Install

  9. Rear Bumper Fascia Energy Absorber Bolt (2) - Install [2x] Fastener Specifications
  10. Rear Bumper Fascia Energy Absorber Clip (1) - Install [4x]
  11. Install the wiring harness.
  12. Connect the electrical connector from the low frequency rear bumper antenna.
  13. Connect the rear parking sensor electrical connector
  14. GM5415005Courtesy of GENERAL MOTORS COMPANY

    Rear Bumper Fascia (1) - Install - Rear Bumper Fascia Removal and Installation
