Installation Procedure

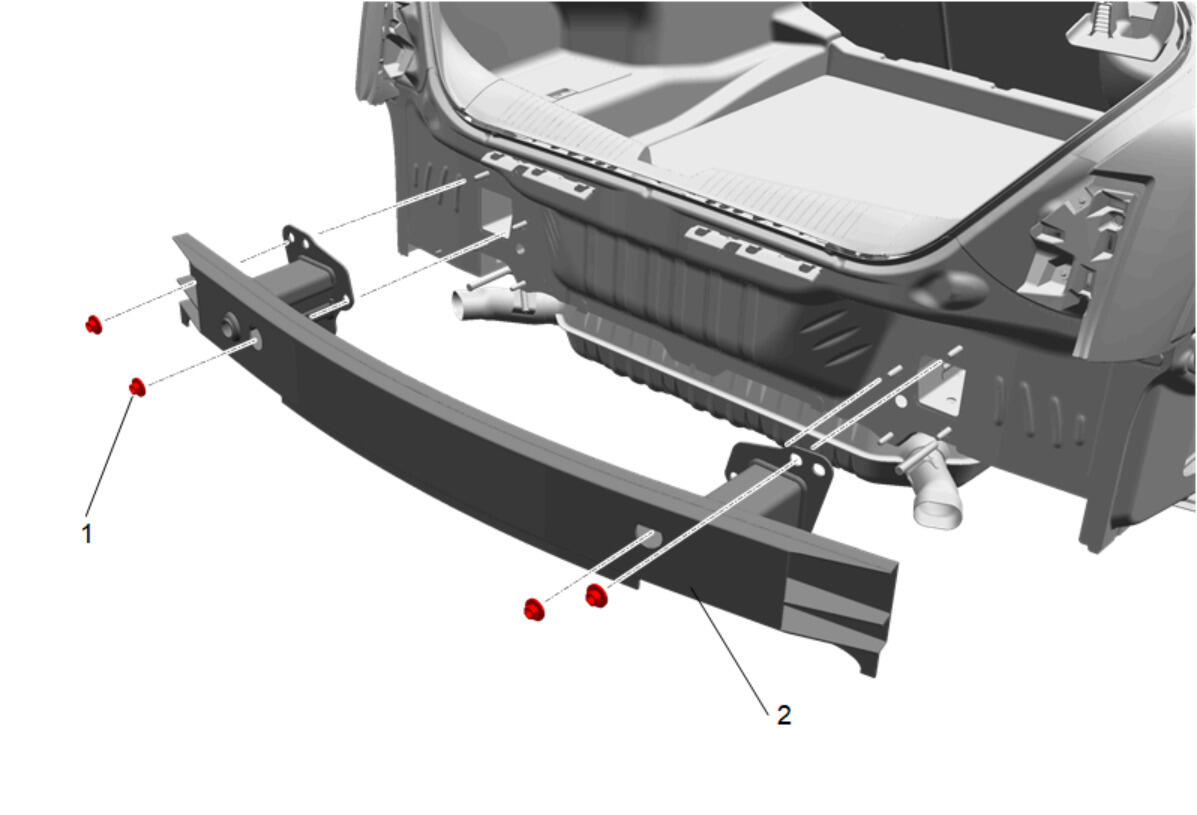

  1. GM5420397Courtesy of GENERAL MOTORS COMPANY

    Rear Bumper Impact Bar (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Rear Bumper Impact Bar Nut (1) - Install [4x] - Fastener Specifications

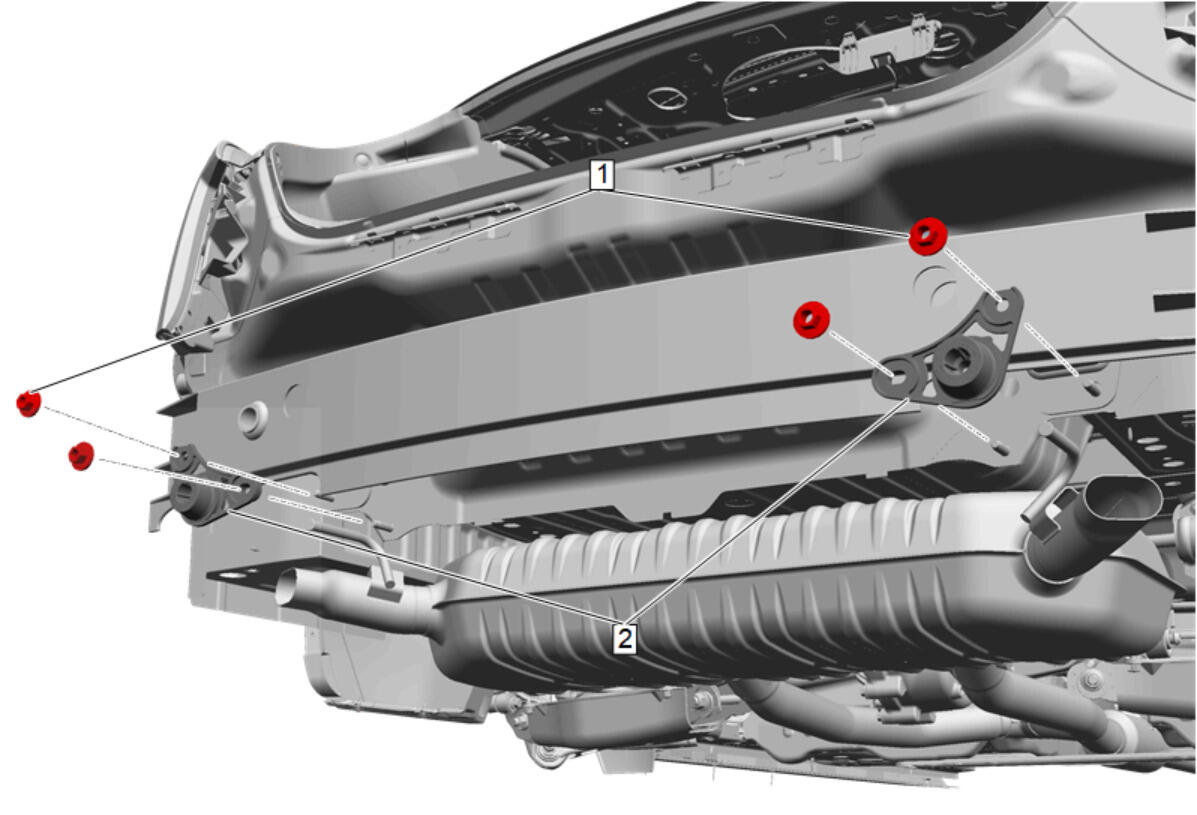

  3. GM5420396Courtesy of GENERAL MOTORS COMPANY

    Exhaust Rear Muffler Insulator (2) - Install [2x]

  4. Exhaust Muffler Hanger Bracket Nut (1) - Install and tighten [4x] - Fastener Specifications
  5. GM5415005Courtesy of GENERAL MOTORS COMPANY

    Rear Bumper Fascia (1) - Install - Rear Bumper Fascia Removal and Installation
