Installation Procedure

GM5415005Courtesy of GENERAL MOTORS COMPANY
  1. Connect all electrical connectors.
  2. With the aid of an assistant, install the fascia (1)

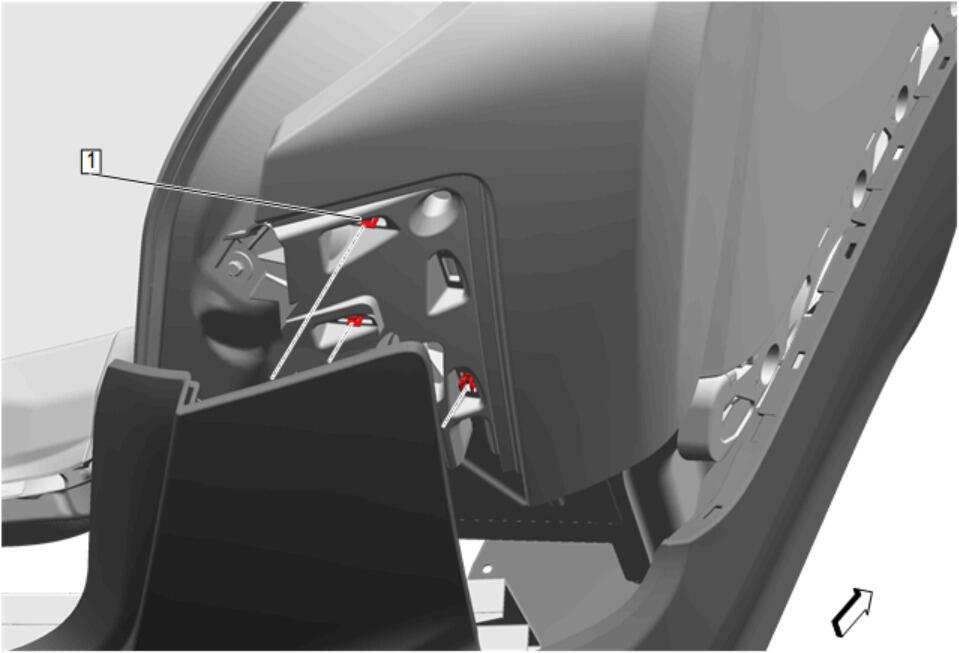

  3. GM5298027Courtesy of GENERAL MOTORS COMPANY

    Install the 3 left and right side rear bumper fascia retainer clips (1) to the rear bumper fascia reinforcement.

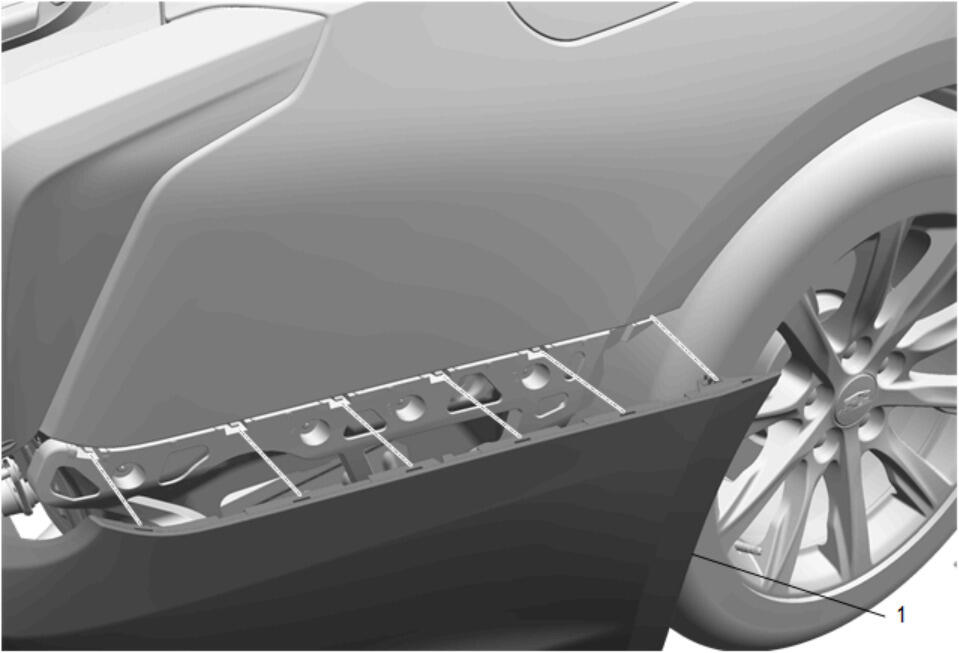

  4. GM5298025Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  5. Install the rear bumper fascia (1) to the rear fascia guide.

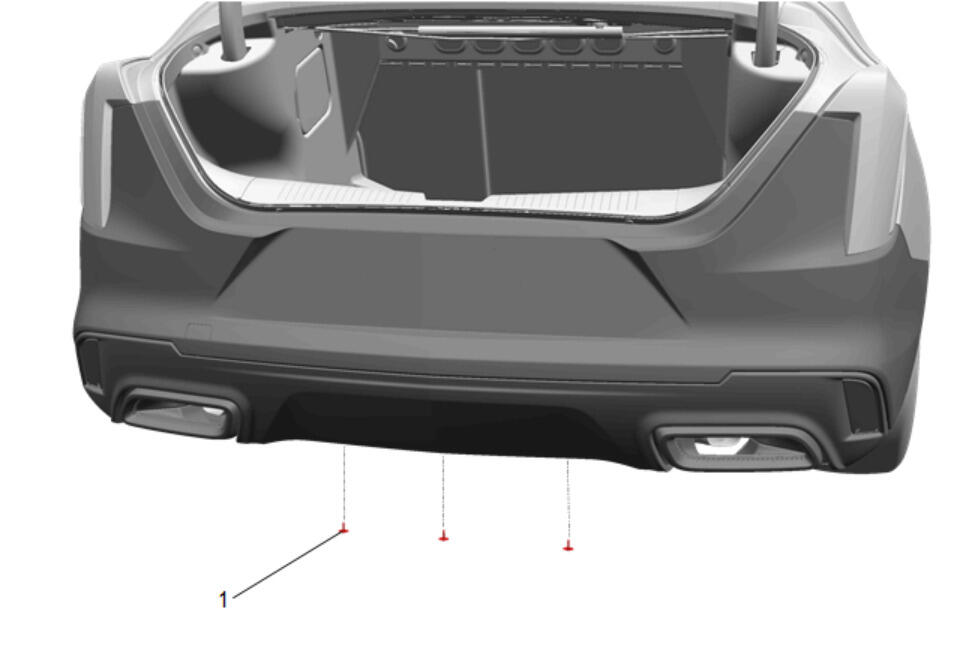

  6. GM5415004Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Rear Bumper Fascia Screw (1) - Install and tighten [3x] - Fastener Specifications

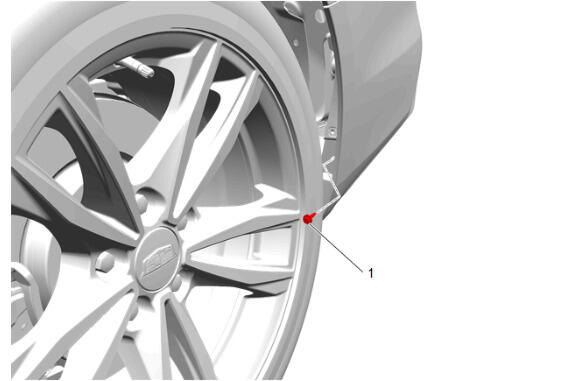

  7. GM5515688Courtesy of GENERAL MOTORS COMPANY

    Install and tighten the left and right side rear fascia bolt (1). Fastener Specifications

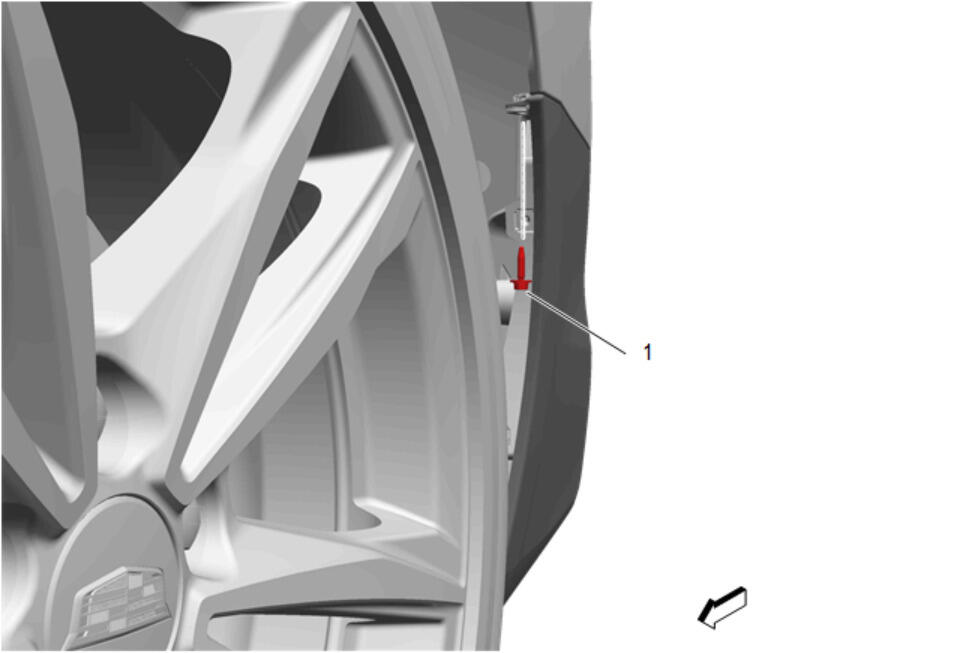

  8. GM5415003Courtesy of GENERAL MOTORS COMPANY

    Install and tighten the left and right side rear fascia bolts (1). Fastener Specifications

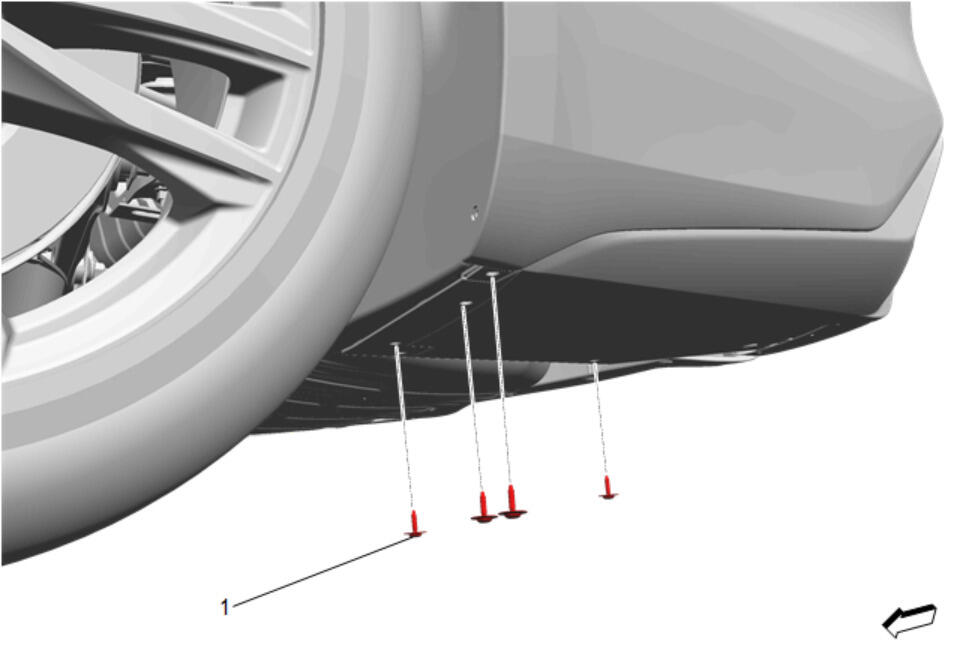

  9. GM5415001Courtesy of GENERAL MOTORS COMPANY

    Install and tighten the 4 left and right side rear bumper fascia screw (1). Fastener Specifications

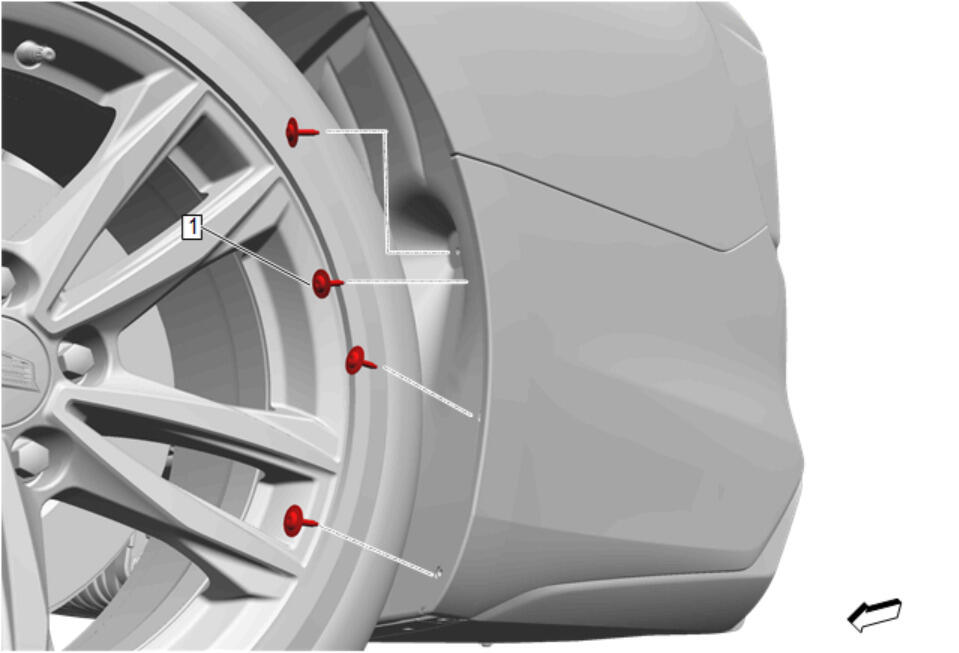

  10. GM5414999Courtesy of GENERAL MOTORS COMPANY

    Install and tighten the 8 rear wheelhouse liner bolts to the left and right rear wheelhouse liners. Fastener Specifications

  11. Lower the vehicle.
