Removal Procedure

  1. GM5415005Courtesy of GENERAL MOTORS COMPANY

    Rear Bumper Fascia (1) - Remove - Rear Bumper Fascia Removal and Installation

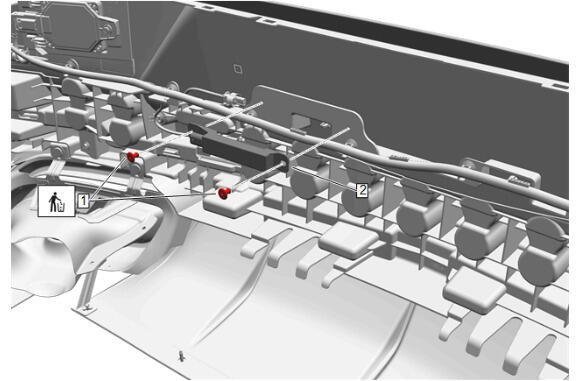

  2. GM5484115Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Refer to Eye Protection Warning .

    Remove and discard the 2 low frequency rear bumper antenna rivets.

  3. Disconnect the electrical connector.
  4. Low Frequency Rear Bumper Antenna (2) - Remove
  5. Disconnect the rear parking sensor connector.
  6. GM5415737Courtesy of GENERAL MOTORS COMPANY

    Rear Bumper Fascia Energy Absorber Clip (1) - Remove [4x]

  7. Rear Bumper Fascia Energy Absorber Bolt (2) - Remove [2x]
  8. Reposition the wiring harness.
  9. Rear Bumper Energy Absorber (3) - Remove
