Installation Procedure

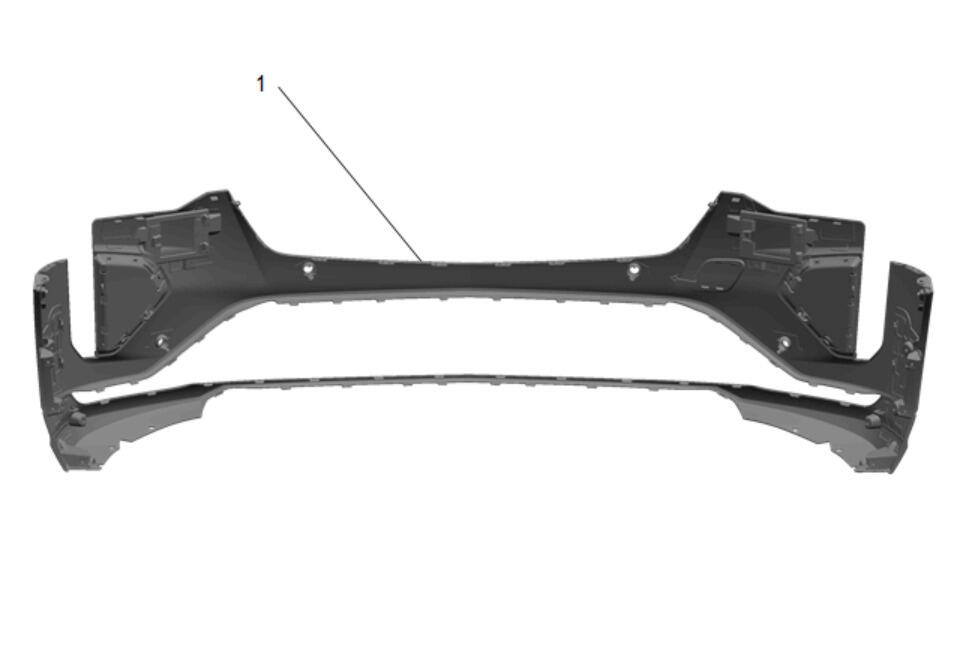

GM5412098Courtesy of GENERAL MOTORS COMPANY
  1. Prepare the front bumper upper fascia (1) for installation.

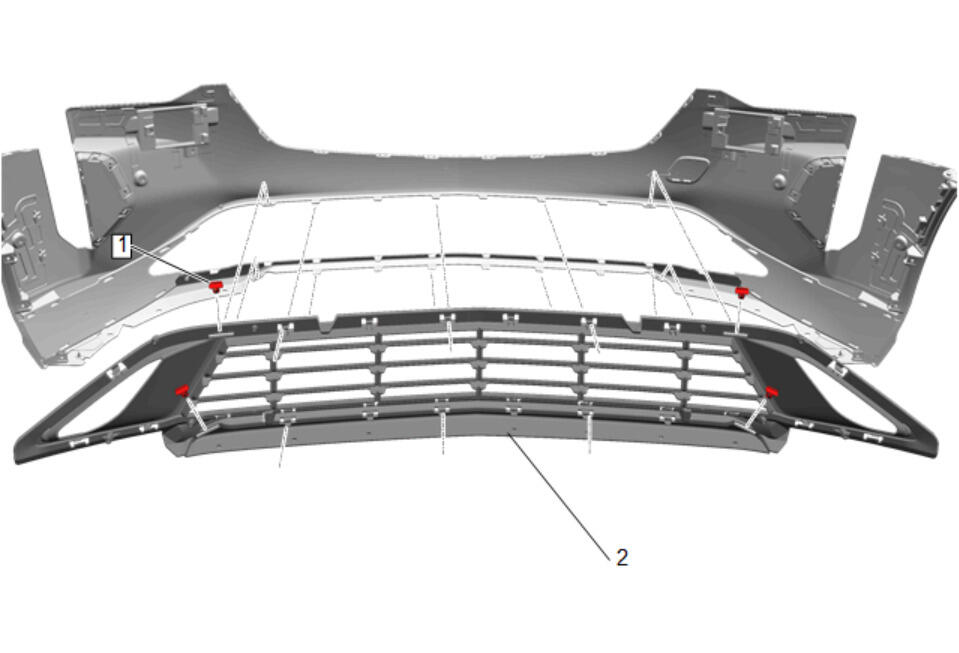

  2. GM5418012Courtesy of GENERAL MOTORS COMPANY

    Front Lower Grille (2) - Install

  3. Front Lower Grille Clip (1) - Install [4x]

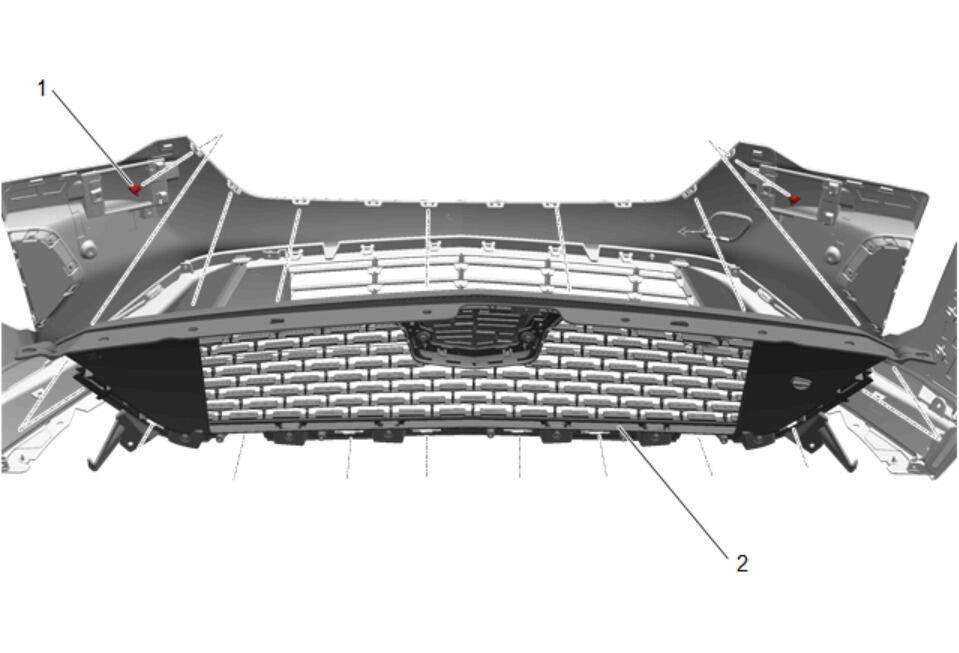

  4. GM5418009Courtesy of GENERAL MOTORS COMPANY

    Front Grille (2) - Install

  5. Front Grille Clip (1) - Install [2x]

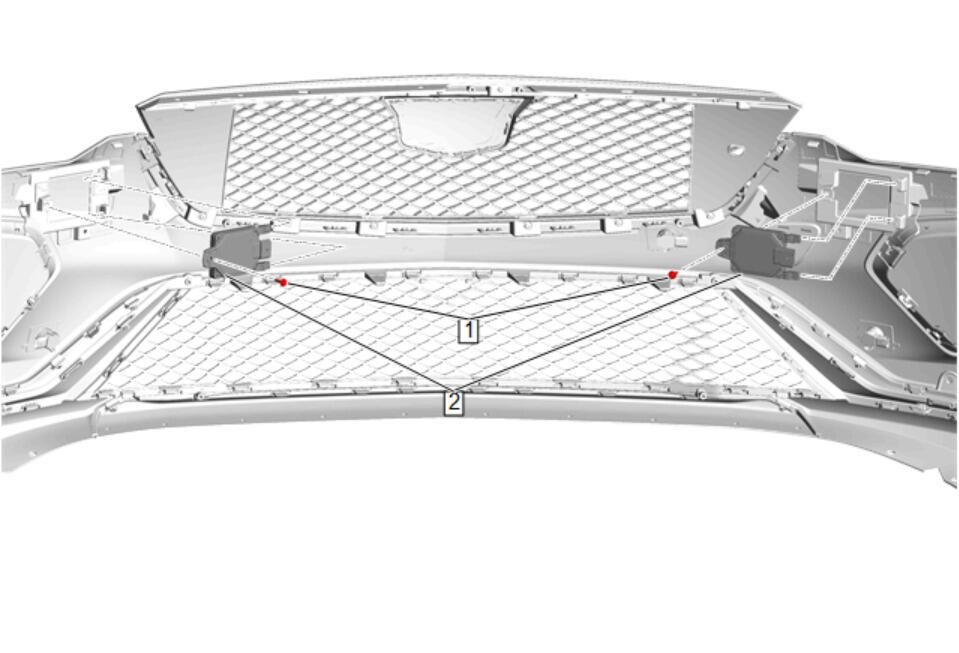

  6. GM5420106Courtesy of GENERAL MOTORS COMPANY

    Short Range Radar Sensor (2) - Install [2x]

    7. CAUTION:

    Refer to Fastener Caution .

  7. Install the 2 short range radar sensor bolts (1). Fastener Specifications

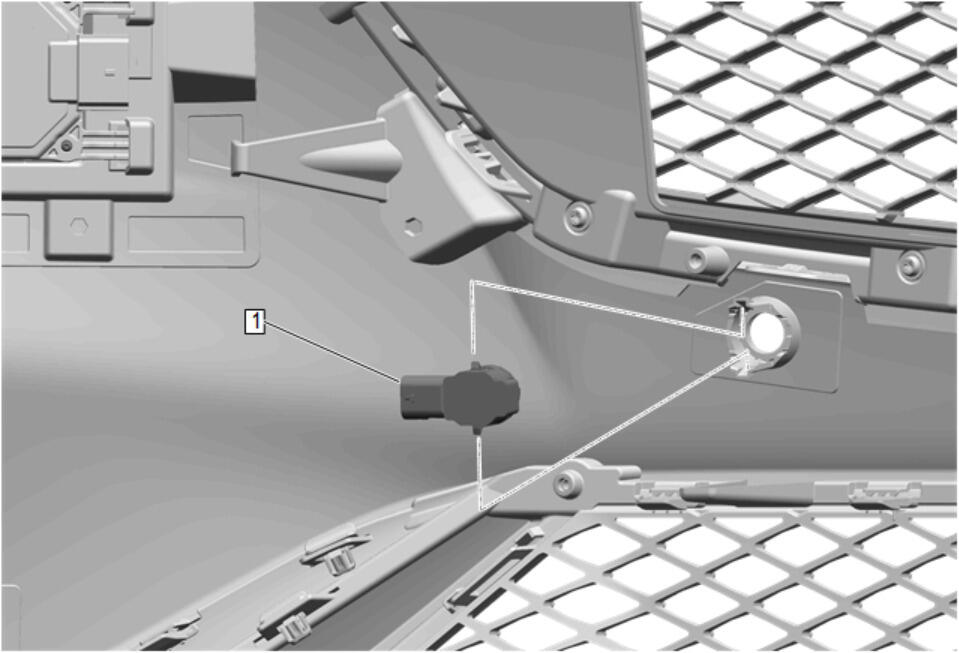

  8. GM5420104Courtesy of GENERAL MOTORS COMPANY

    Install the 4 object sensors (1).

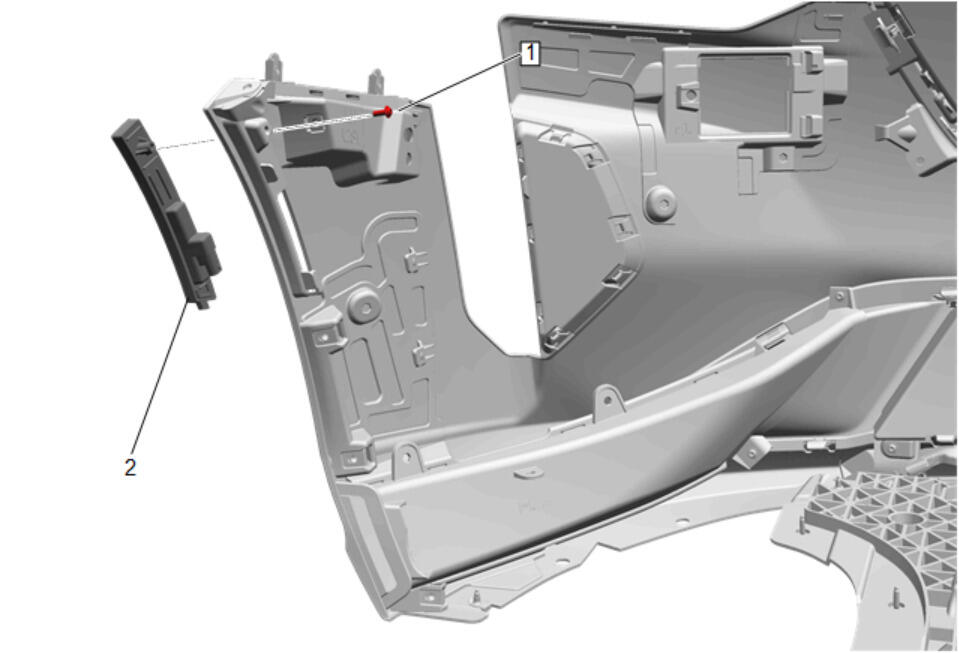

  9. GM5418098Courtesy of GENERAL MOTORS COMPANY

    Install the 2 left and right side front side marker lamps (2).

  10. Install and tighten the 2 left and right side front side marker lamp screws (1). Fastener Specifications
  11. GM5409377Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Shutter (2) - Install

  12. Front Bumper Shutter Bolt (1) - Install and tighten [6x] - Fastener Specifications
  13. GM5412090Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Energy Absorber (1) Install

  14. GM5408645Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Install Front Bumper Fascia Removal and Installation
