Installation Procedure

GM5412098Courtesy of GENERAL MOTORS COMPANY
  1. Prepare the front bumper upper fascia (1) for installation.
  2. Transfer components as necessary.

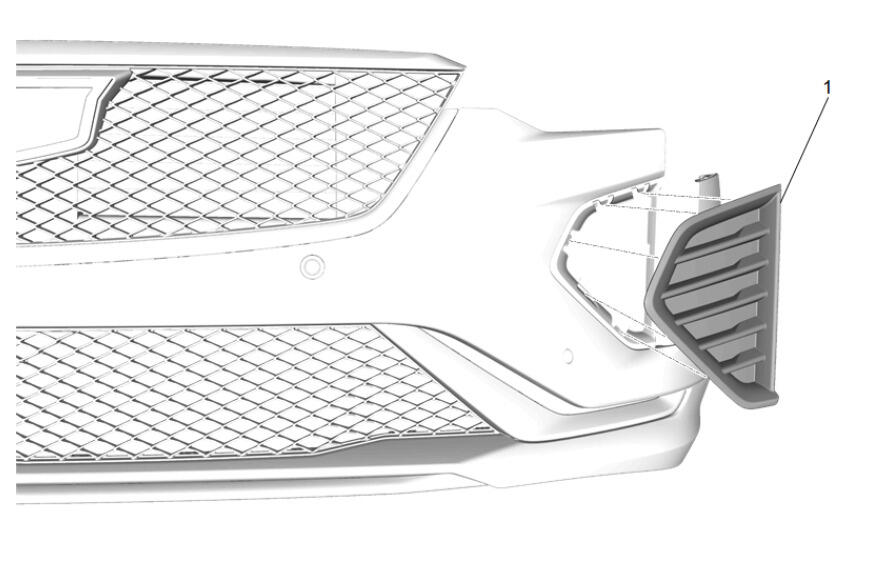

  3. GM5437458Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Front Bumper Fascia Molding- Left Side and Right Side (1) - Install [2x]

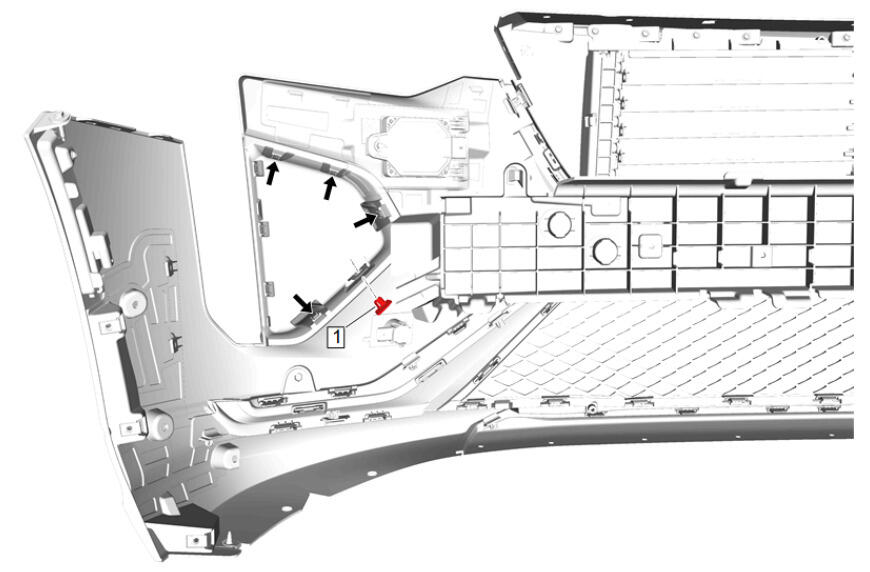

  4. GM5437457Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Seat the left side and right side front bumper fascia molding retaining tabs.

  5. Front Grille Clip- Left Side and Right Side (1) - Install [2x]
  6. GM5418012Courtesy of GENERAL MOTORS COMPANY

    Front Lower Grille (2) - Install

  7. Front Lower Grille Clip (1) - Install [4x]
  8. GM5418009Courtesy of GENERAL MOTORS COMPANY

    Front Grille (2) - Install

  9. Front Grille Clip (1) - Install [2x]
  10. GM5420106Courtesy of GENERAL MOTORS COMPANY

    Short Range Radar Sensor (2) - Install [2x]

    11. CAUTION:

    Refer to Fastener Caution .

  11. Install the 2 short range radar sensor bolts (1). Fastener Specifications
  12. GM5420104Courtesy of GENERAL MOTORS COMPANY

    Install the 4 object sensors (1).

  13. GM5418098Courtesy of GENERAL MOTORS COMPANY

    Install the left and right side front side marker lamp (1).

  14. Install and tighten the left and right side front side marker lamp screw (1). Fastener Specifications
  15. GM5409385Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Shutter Frame (2) - Install -

  16. Front Bumper Shutter Bolt (1) Install and tighten [6x] - Fastener Specifications
  17. GM5412090Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Energy Absorber (1) Install.

  18. GM5408645Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation
