Installation Procedure

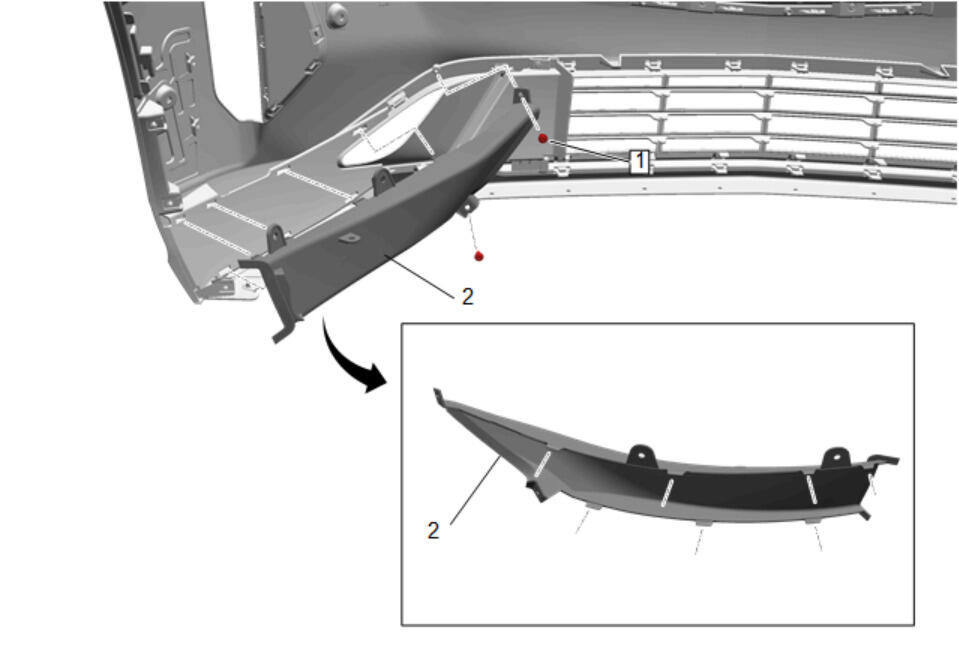

  1. GM5411026Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Outer Air Duct (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Front Bumper Fascia Outer Air Duct Bolt (1) - Install and tighten [2x] - Fastener Specifications

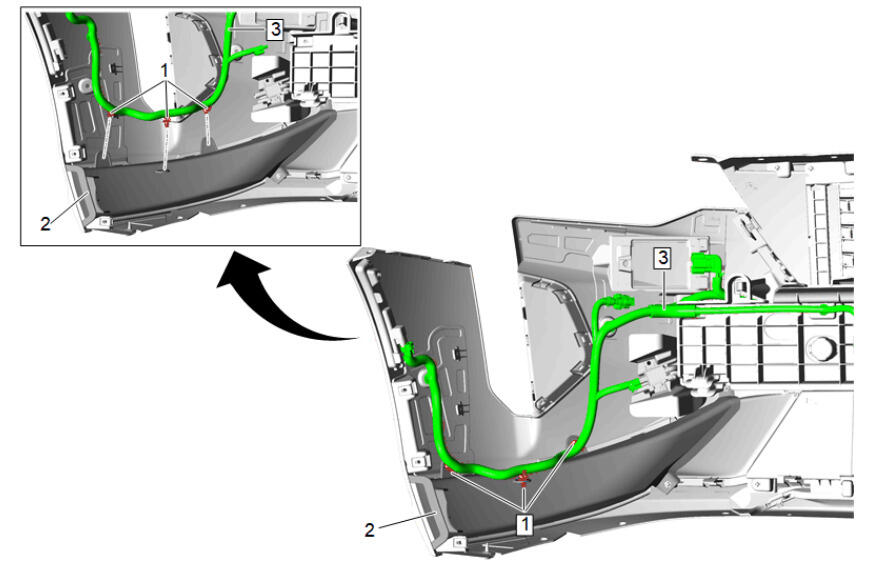

  3. GM5460844Courtesy of GENERAL MOTORS COMPANY

    Position the wiring harness (3) to the original location.

  4. Install the 3 wiring harness retainers (1) to the front bumper fascia outer air duct (2).
  5. GM5408645Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation
