Removal Procedure

  1. GM5408645Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Remove - Front Bumper Fascia Removal and Installation

  2. Reposition the wiring harness.
  3. GM5412090Courtesy of GENERAL MOTORS COMPANY

    Release the retainer tabs on the front bumper fascia and pull the energy absorber (1) from the front bumper fascia.

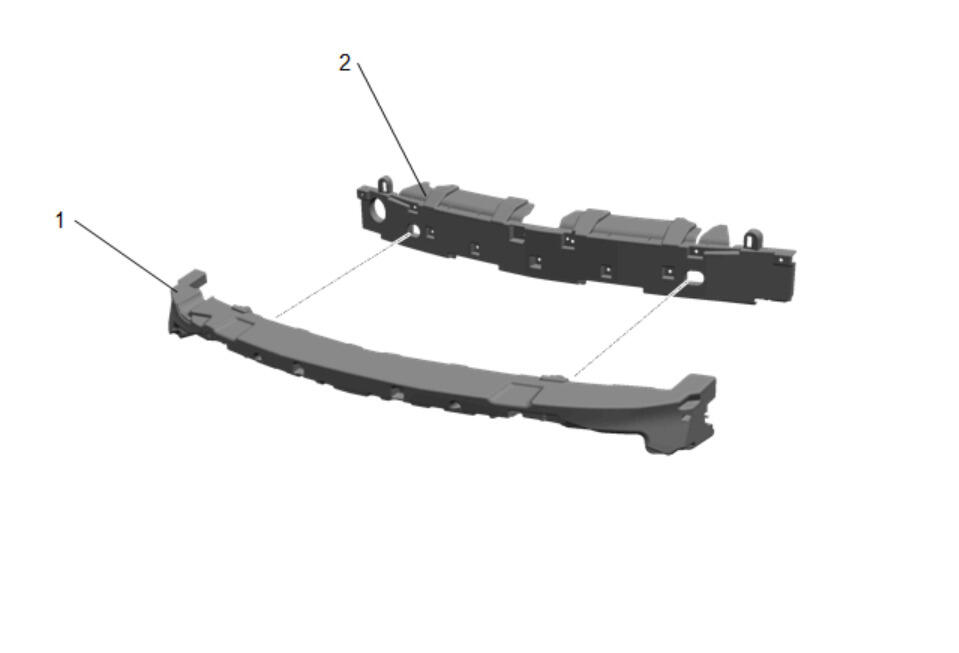

  4. GM5410150Courtesy of GENERAL MOTORS COMPANY

    Release the foam absorber (1) from the plastic absorber (2) as required.
