Removal Procedure

Drain the cooling system. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill) , or Cooling System Draining and Filling (LSY with V03 Static Fill) , or Cooling System Draining and Filling (L3B Static Fill) , or Cooling System Draining and Filling (L3B GE 47716) , or Cooling System Draining and Filling (LSY with V03 GE 47716)
Remove the tire and wheel assembly. Tire and Wheel Removal and Installation
Courtesy of GENERAL MOTORS COMPANY
NOTE:
- Left side shown, right side similar.
- Quantity of fasteners may vary based on option content.
Front Tire Front Air Deflector Bolt (1) - Remove [4x]
Front Tire Front Air Deflector- Right Side (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Front Bumper Fascia Air Deflector Bolt (1) - Remove [3x]
Front Bumper Fascia Bolt (2) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY
NOTE:
- Left side shown, right side similar.
- Quantity of fasteners may vary based on option content.
- Components removed for graphic clarity.
Engine Front Splash Shield Retainer (2) - Remove [2x]
Engine Front Splash Shield Bolt (1) - Remove [5x]
Engine Front Splash Shield- Right Side (3) - Remove
Courtesy of GENERAL MOTORS COMPANY
NOTE:
- Left side shown, right side similar.
- Components removed for graphic clarity.
Front Wheelhouse Liner Bolt (1) - Remove [7x]
Front Wheelhouse Liner Retainer (2) - Remove [4x]
Remove the right front wheelhouse liners (3).
Courtesy of GENERAL MOTORS COMPANY

Remove the left side upper front bumper fascia bolt (2).
Courtesy of GENERAL MOTORS COMPANY

Remove the right side upper front bumper fascia bolt (2).
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Center Air Deflector Screw (1) - Remove [6x]
Front Bumper Fascia Center Air Deflector Bolt (2) - Remove [5x]
Front Bumper Fascia Center Air Deflector Retainer (3) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Bolt (1) - Remove [6x]
Courtesy of GENERAL MOTORS COMPANY

On the left side of the front bumper fascia carefully push a small nylon wedge between the front bumper fascia (1), the front bumper fascia guide (2), and the front headlamp (3). Insert a suitable flat-bladed plastic trim tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the left side of the front bumper fascia.
Courtesy of GENERAL MOTORS COMPANY

Reposition the front bumper fascia on the right side to gain access to the electrical connector (1).
Disconnect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

On the left side of the front bumper fascia carefully push a small nylon wedge between the front bumper fascia (1), the front bumper fascia guide (2), and the front headlamp (3). Insert a suitable flat-bladed plastic trim tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the left side of the front bumper fascia.
Courtesy of GENERAL MOTORS COMPANY

With the aid of an assistant, remove the fascia (1)
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Support Brace Bolt (1) - Remove [3x]
Front Bumper Fascia Support Brace (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Front End Sheet Metal Cross Brace Bolt (1) - Remove [2x]
Front End Sheet Metal Cross Brace- Right Side (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Horn Bolt (1) - Remove [2x]
Horn (2) - Reposition [2x]
Disconnect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

Reposition the wiring harness.
Front Bumper Impact Bar Bolt (1) - Remove [8x]
Front Bumper Impact Bar (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Auxiliary Radiator Duct Retainer- Right Side (1) - Remove [3x]
Courtesy of GENERAL MOTORS COMPANY

Auxiliary Radiator Rear Duct- Right Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Auxiliary Radiator Duct Retainer- Right Side (1) - Remove [3x]
Courtesy of GENERAL MOTORS COMPANY

Auxiliary Radiator Duct Retainer- Right Side (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Auxiliary Radiator Front Duct- Right Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

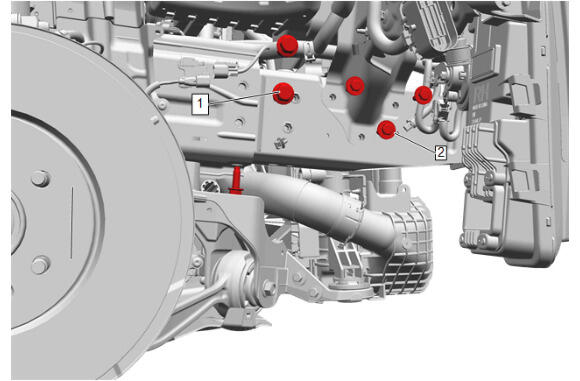

Charge Air Cooler Bracket Bolt (1) - Remove [3x]
Charge Air Cooler Upper Bracket Nut (2) - Loosen
Reposition the engine auxiliary radiator assembly.
Courtesy of GENERAL MOTORS COMPANY

Release the 3 radiator air front upper baffle retainers (1).
Radiator Air Front Upper Baffle (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

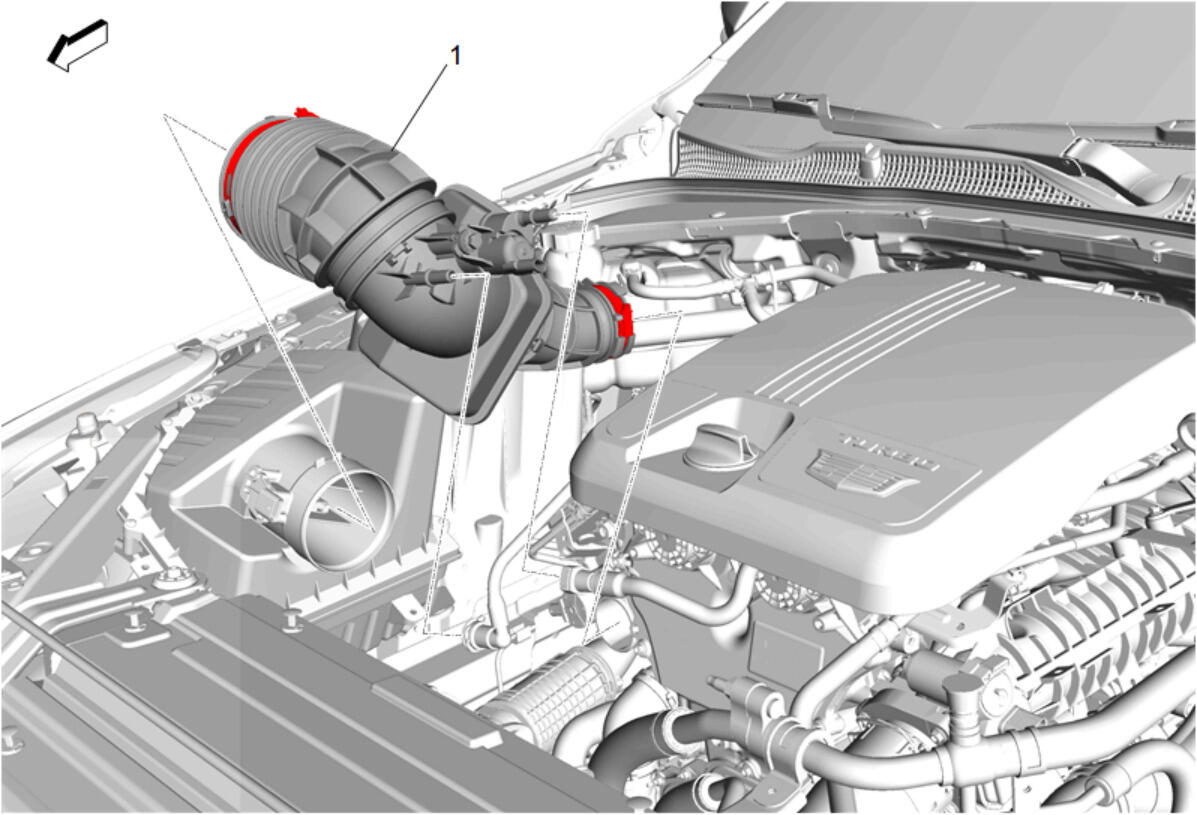

Intake Air Duct (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Outlet Duct (1) - Reposition
Courtesy of GENERAL MOTORS COMPANY

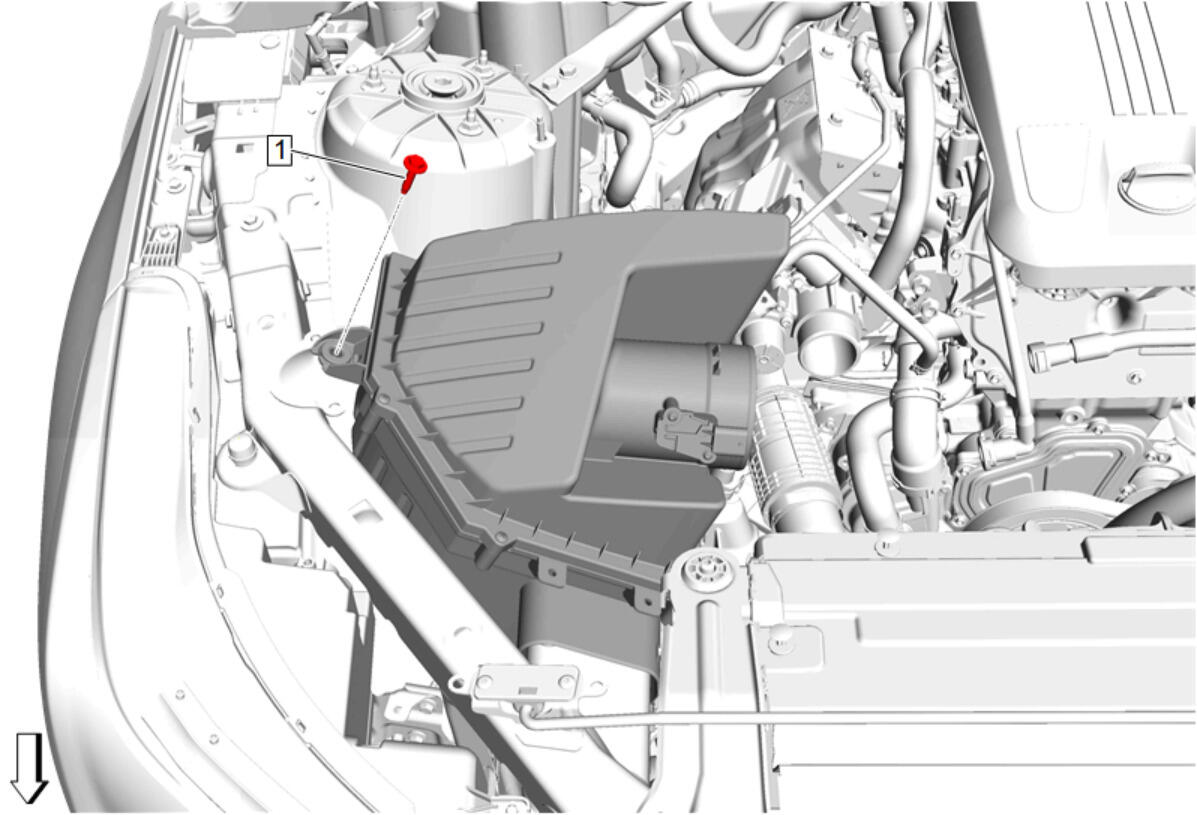

Air Cleaner Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

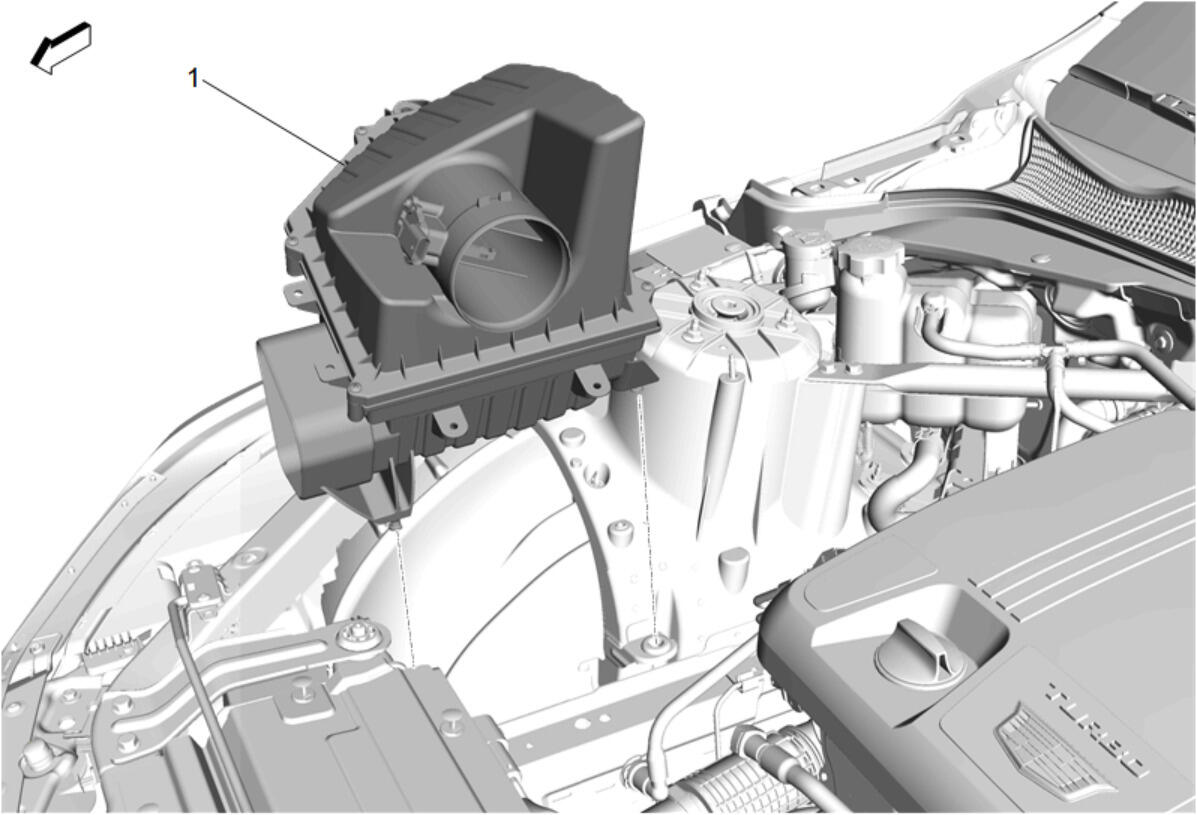

Air Cleaner Assembly (1) - Remove
Raise and support the vehicle. Lifting and Jacking the Vehicle
Courtesy of GENERAL MOTORS COMPANY

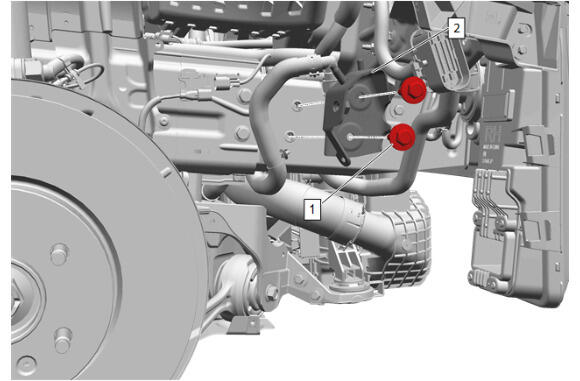

Charge Air Cooler Bracket Bolt (1) - Remove [2x]
Charge Air Cooler Bracket (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

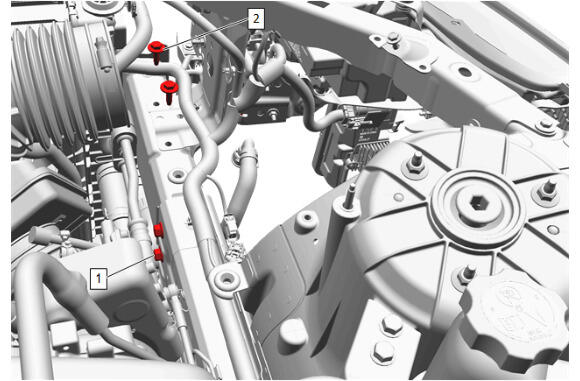

Front Bumper Fascia Energy Absorber Bolt (1) - Remove [3x]
Front Compartment Front Panel Bolt (2) - Remove [3x]
Courtesy of GENERAL MOTORS COMPANY

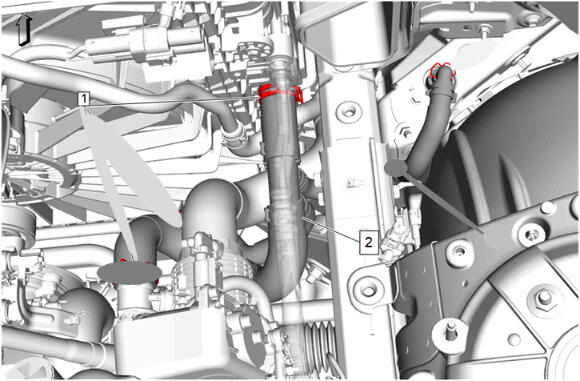

Radiator Outlet Hose Clamp (1) - Disengage [3x] - Hose Clamp Replacement Guidelines - Spring Type
Reposition radiator outlet hose (2) downward.
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Energy Absorber Bolt (1) - Remove [2x]
Front Compartment Front Panel Bolt (2) - Remove [2x]
Reposition the wiring harness retainers.
Courtesy of GENERAL MOTORS COMPANY

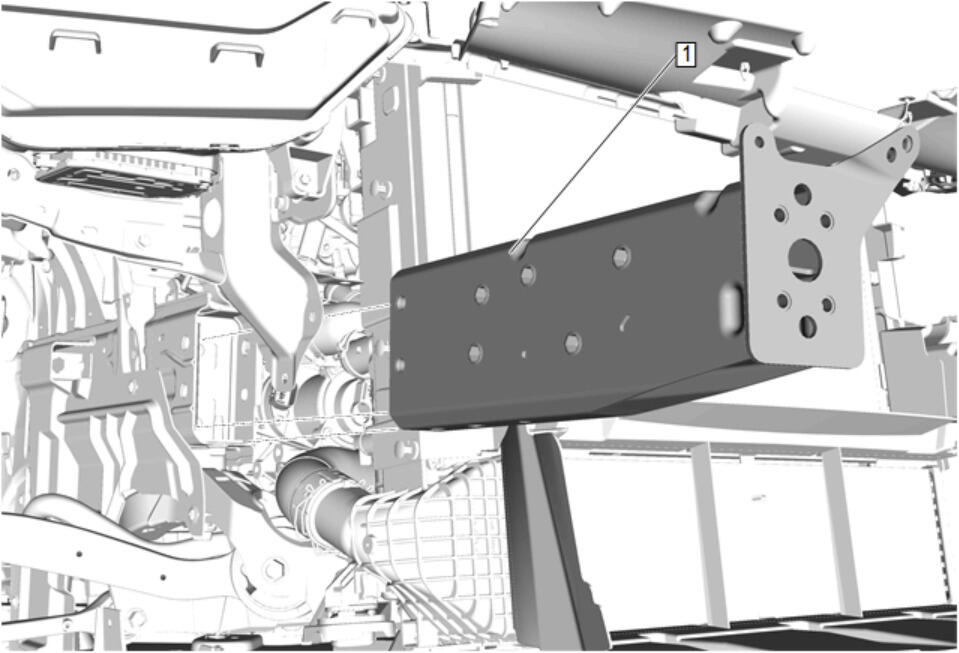

Slide the front bumper energy absorber (1) out from the front compartment side rail.
