Transmission Mount Replacement (LSY with MHS)

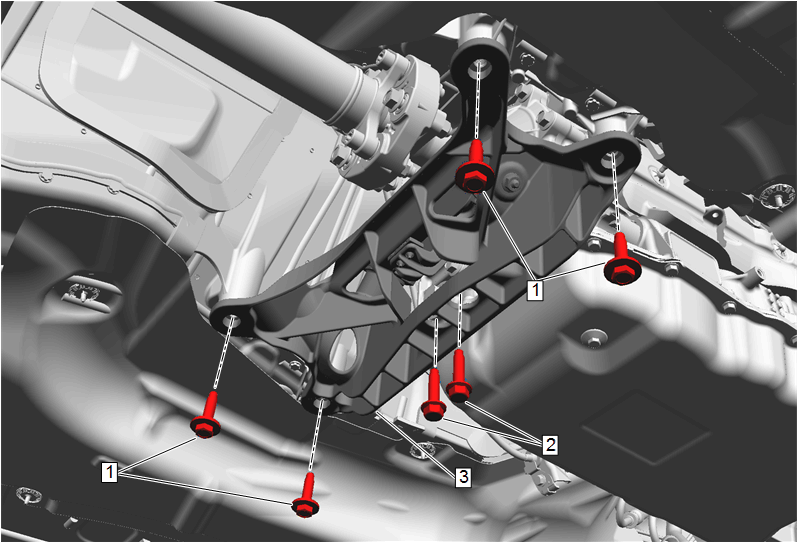

GM5339650Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Support the transmission with a suitable jack.
1 Transmission Mount Bracket Bolt [4x]
CAUTION:

Refer to Fastener Caution


Tighten
58 N.m (43 lb ft)
2 Transmission Mount Bracket Bolt [2x]
Tighten
58 N.m (43 lb ft)
3 Transmission Mount
