Auxiliary Heater and Air Conditioning Control Replacement

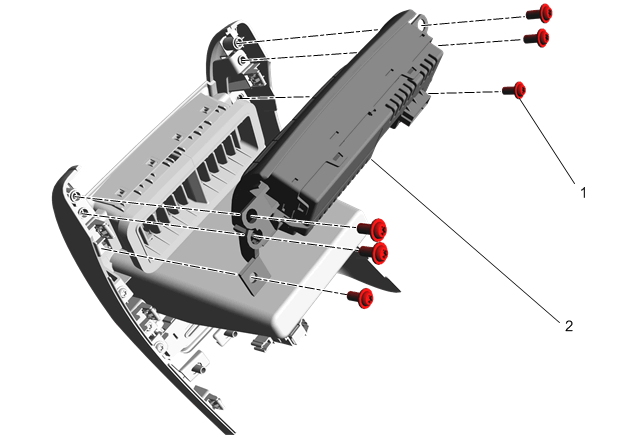

GM4255686Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Floor Console Rear Trim Panel Replacement
1 Auxiliary Heater and Air Conditioning Control Bolt [6x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.0 N.m (18 lb in)
2 Auxiliary Heater and Air Conditioning Control
