Engine Wiring Harness Fuse Block Bracket Replacement (LGX)

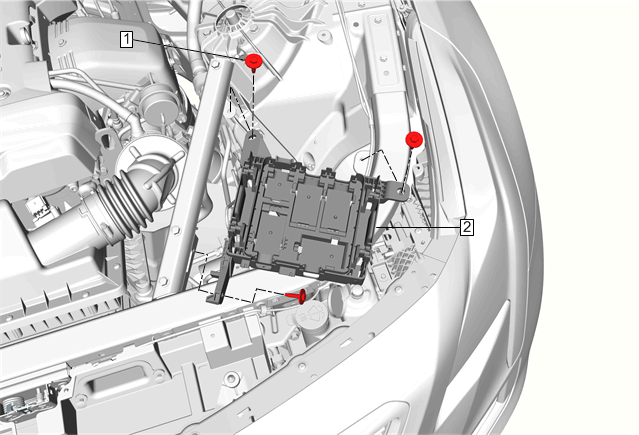

Callout	Component Name
Preliminary Procedures Engine Wiring Harness Junction Block Replacement (LGX) Engine Wiring Harness Junction Block Replacement (LTA) Remove wire harness connector ends from engine wiring harness fuse block bracket.
1	Engine Wiring Harness Fuse Block Bracket Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Engine Wiring Harness Fuse Block Bracket

Callout

Component Name

Preliminary Procedures

Engine Wiring Harness Fuse Block Bracket Bolt [3x]

CAUTION:

Tighten
9 N.m (80 lb in)

Engine Wiring Harness Fuse Block Bracket
