X435 Body Harness to Exhaust Flow Control Valve Harness
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

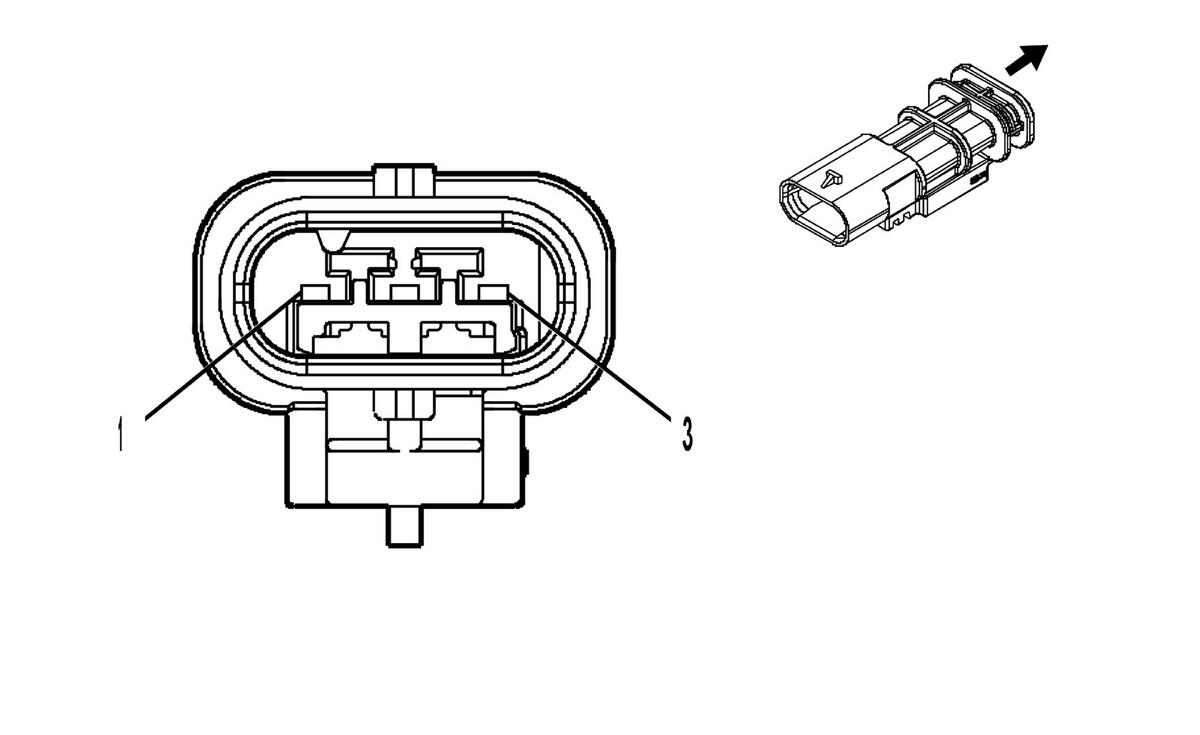

Connector Part Information
- Harness Type: Body
- OEM Connector: 1-2296695-1
- Service Connector: 19366844
- Description: 3-Way F 1.2 MCON-CB Series, Sealed (BK)
|
Connector Part Information
- Harness Type: Exhaust Flow Control Valve
- OEM Connector: 2203318-1
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way M 1.2 MCON-CB Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-17 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
X435 Body Harness to Exhaust Flow Control Valve Harness
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.75 |
BK |
3850 |
I |
- |
Ground 38 |
1 |
0.5 |
BK |
3850 |
II |
- |
| 2 |
0.5 |
GN/VT |
4316 |
I |
- |
Exhaust Flow Control Valve 2 |
2 |
0.5 |
GN/VT |
4316 |
II |
- |
| 3 |
0.5 |
VT/GY |
2339 |
I |
- |
Run/Crank Ignition 1 Voltage 23 |
3 |
0.75 |
VT/GY |
2339 |
II |
- |
