Instrument Panel Lower Trim Panel Insulator Replacement - Right Side

Courtesy of GENERAL MOTORS COMPANY

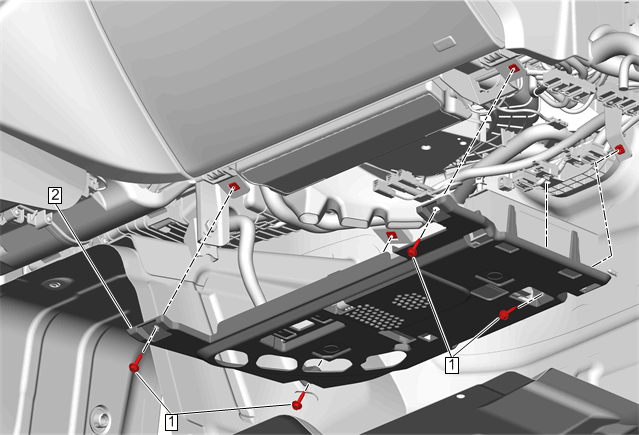

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedure Disable the SIR system. SIR Disabling and Enabling NOTE: When removing the instrument panel lower trim panel insulator for any reason, it is required that the connectors to the heater and air conditioning remote control be disconnected. If the vehicle battery has NOT been disconnected, when reinstalling or reconnecting the remote control, the BROWN J2 connector must be connected last. Once all the parts are all in place, check and clear all DTCs in the heater and air conditioning remote control.
1	Instrument Panel Trim Pad Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Lower Trim Panel Insulator Procedure Disconnect the electrical connectors. Transfer components as necessary. Enable the SIR System. SIR Disabling and Enabling

Callout

Component Name

WARNING:

Preliminary Procedure Disable the SIR system. SIR Disabling and Enabling

NOTE:

When removing the instrument panel lower trim panel insulator for any reason, it is required that the connectors to the heater and air conditioning remote control be disconnected. If the vehicle battery has NOT been disconnected, when reinstalling or reconnecting the remote control, the BROWN J2 connector must be connected last. Once all the parts are all in place, check and clear all DTCs in the heater and air conditioning remote control.

Instrument Panel Trim Pad Bolt [4x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Instrument Panel Lower Trim Panel Insulator

Procedure

Disconnect the electrical connectors.
Transfer components as necessary.
Enable the SIR System. SIR Disabling and Enabling
