Front Floor Lower Console Replacement (Left Side)

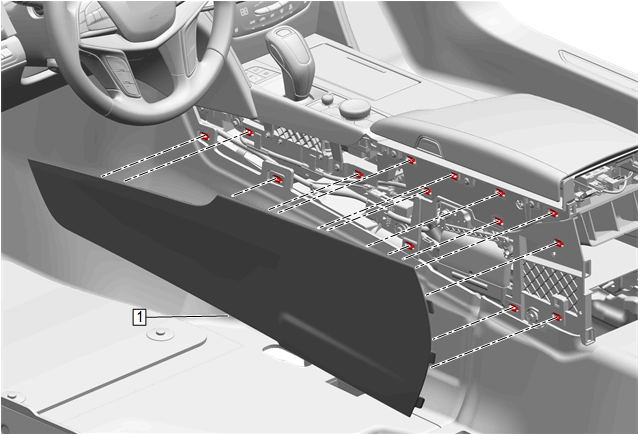

GM5120212Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Floor Console Rear Trim Panel Replacement
1 Front Floor Lower Console - Left Side

Procedure

  1. Reposition the seat as necessary to access the bolts.
  2. Using a flat-bladed plastic trim tool, release the retaining clips.
