Front Floor Console Rear Trim Plate Replacement (Rear Lower with Speaker)

Courtesy of GENERAL MOTORS COMPANY

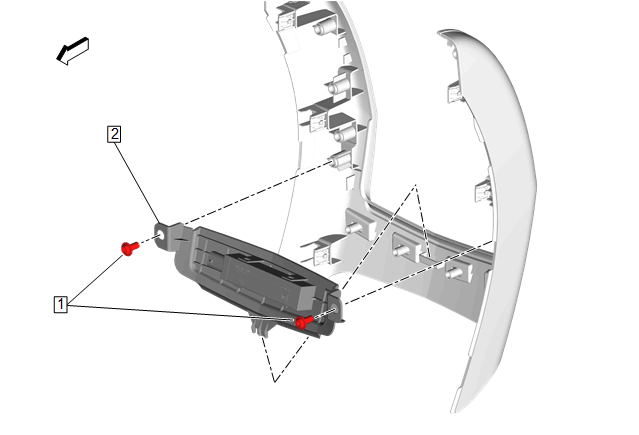

Callout	Component Name
Preliminary Procedure  Radio Rear Speaker Grille Replacement
1	Front Floor Console Bolt [2X] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Front Floor Console Rear Trim Plate Procedure  Transfer components as necessary.
