Removal Procedure

  1. Prepare the electronic brake booster control module for removal. Control Module References
    GM4247112Courtesy of GENERAL MOTORS COMPANY
  2. Windshield Wiper Transmission (2) - Remove - Windshield Wiper Transmission Replacement
  3. Disconnect the electronic brake booster control module connector.

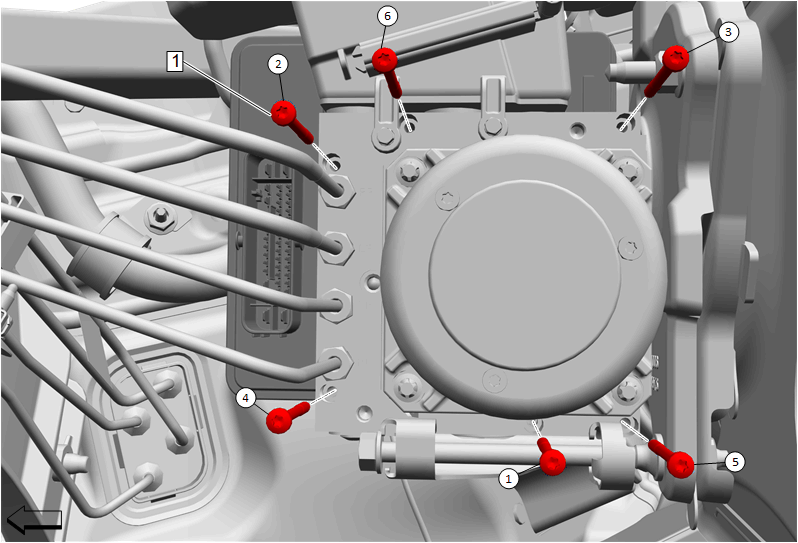

    GM5343821Courtesy of GENERAL MOTORS COMPANY
  4. Electronic Brake Control Module Bolt (1) - Remove and DISCARD [6x]

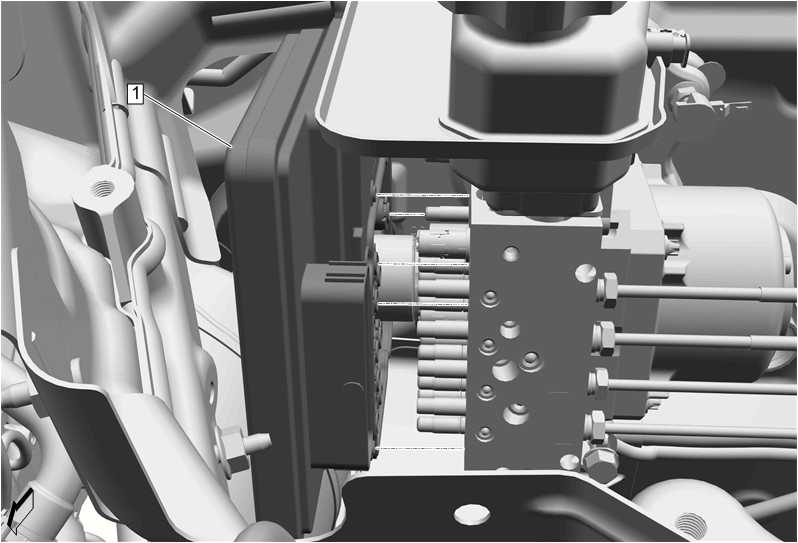

    GM5343820Courtesy of GENERAL MOTORS COMPANY
  5. Electric Brake Booster Control Module (1) - Remove
  6. Transfer components as necessary.
