Installation Procedure

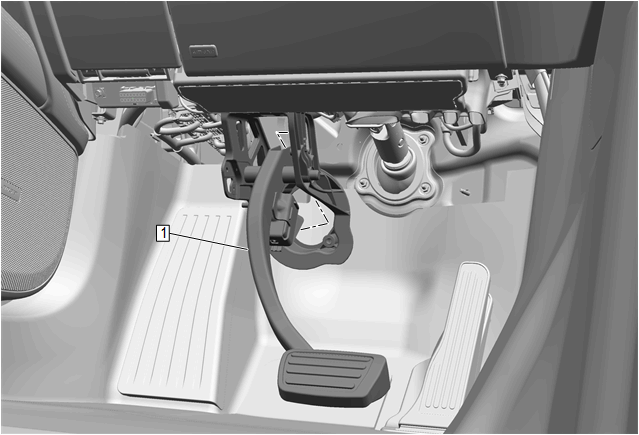

  1. GM5095944Courtesy of GENERAL MOTORS COMPANY

    Brake Pedal Assembly (1) - Install

  2. GM5095848Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Brake Pedal Bolt - Install and tighten [2x] 10N.m (89 lb in)

  3. GM5095820Courtesy of GENERAL MOTORS COMPANY

    Brake Master Cylinder (1) - Install - Brake Master Cylinder Replacement - With Power Brake Booster and Electronic Brake Control Module (LTA)

  4. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  5. Bleed the brake system. Hydraulic Brake System Bleeding (Manual with LGX) Hydraulic Brake System Bleeding (Pressure with LGX) Hydraulic Brake System Bleeding (Pressure with LTA)
  6. Check for brake system leaks.
