Front Brake Caliper Bleeder Valve Replacement

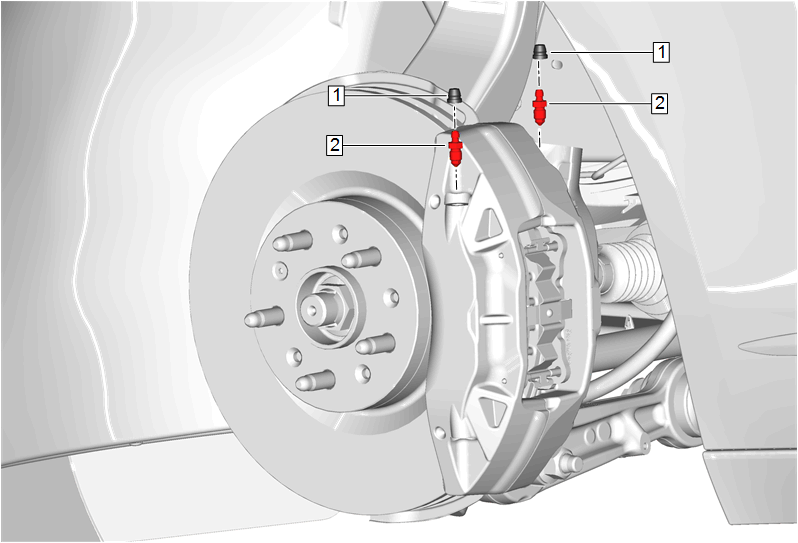

GM5125581
Callout Component Name
WARNING:

Brake Dust Warning

WARNING:

Brake Fluid Irritant Warning

CAUTION:

Brake Fluid Effects on Paint and Electrical Components Caution

Preliminary Procedures

  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
  2. Remove the tire and wheel assembly. Tire and Wheel Removal and Installation
1 Front Brake Caliper Bleeder Valve Cap [2x]
2 Front Brake Caliper Bleeder Valve [2x]
CAUTION:

Component Fastener Tightening Caution

Procedure

  1. Install the tire and wheel assembly. Tire and Wheel Removal and Installation
  2. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection

Tighten
17 - 20 Nm (13 - 15 lb ft)
