Front Side Door Window Garnish Molding Replacement

Courtesy of GENERAL MOTORS COMPANY

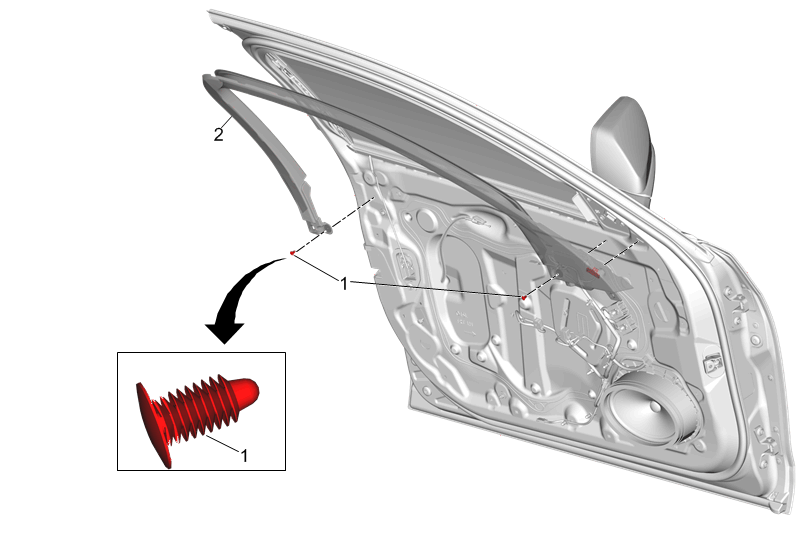

Callout	Component Name
Preliminary Procedure Front Side Door Trim Replacement
1	Front Side Door Window Garnish Molding Retainer [2x] Procedure Use a flat-bladed plastic tool to remove the push-in retainers.
2	Front Side Door Window Garnish Molding Procedure Pull outward starting at the front and moving slowly rearward to remove the molding. Ensure that the door weatherstrip is not trapped below the garnish molding once completely installed. Reposition the weatherstrip as necessary. NOTE: There is a metal retainer on the backside of the front portion of the garnish molding.

Callout

Component Name

Front Side Door Window Garnish Molding Retainer [2x]
Procedure
Use a flat-bladed plastic tool to remove the push-in retainers.

Front Side Door Window Garnish Molding

Procedure

Pull outward starting at the front and moving slowly rearward to remove the molding.
Ensure that the door weatherstrip is not trapped below the garnish molding once completely installed. Reposition the weatherstrip as necessary.

NOTE:

There is a metal retainer on the backside of the front portion of the garnish molding.
