Front Side Door Armrest Switch Mount Plate Replacement (Drivers Side)

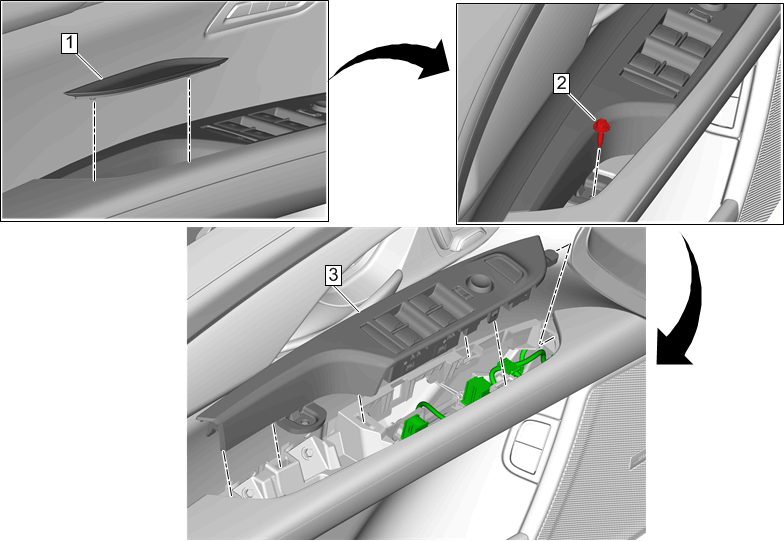

GM4695987Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Side Door Armrest Pull Cup Bolt Cap
2 Front Side Door Armrest Bracket Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
3 Front Side Door Armrest Switch Mount Plate

Procedure

  1. Using a flat bladed plastic trim tool, start at the rear of the armrest switch plate and gently insert trim tool to lift the front side door armrest switch mount plate from the door trim.
  2. Rotate the armrest switch mount plate up and rearward to unhook the front retaining feature.
  3. Disconnect all electrical connectors.
  4. Transfer components as necessary.
