Roof Rail Rear Assist Handle Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

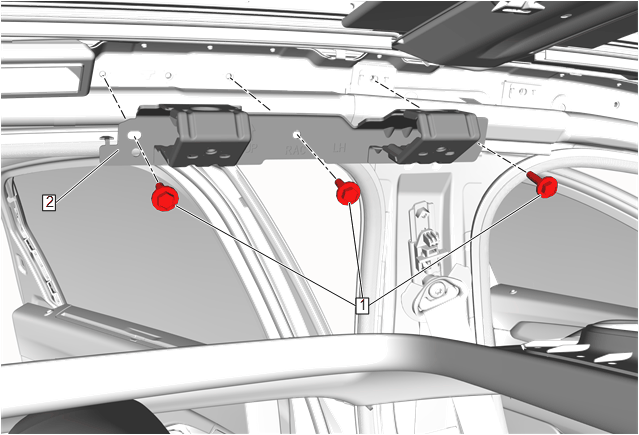

Callout	Component Name
Preliminary Procedures  It is only necessary to lower the headliner. Only perform the steps in the headliner replacement procedure that will lower the headliner enough to gain access to the part. Headlining Trim Panel Replacement (Without C3U)Headlining Trim Panel Replacement (With C3U)
1	Roof Rail Assist Handle Bracket Screw [3x] CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Roof Rail Rear Assist Handle Bracket
