Rear Side Door Lower Auxiliary Weatherstrip Replacement

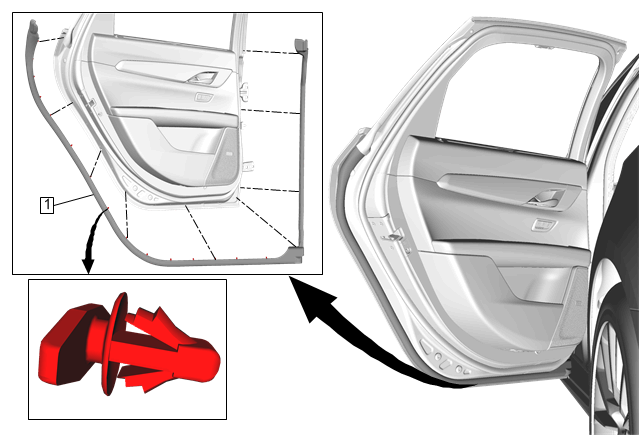

GM4258804Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Open the rear side door.
1 Rear Side Door Lower Auxiliary Weatherstrip
Procedure
Using the appropriate tool, remove the rear side door lower auxiliary weatherstrip from the rear side door panel.
