Rear Compartment Lid Hinge Spring Replacement
| Callout | Component Name |
|---|---|
|
WARNING:
When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
WARNING:
Preliminary Procedures Rear Compartment Side Trim Replacement - Left Side
.Refer to Eye Protection Warning . |
|

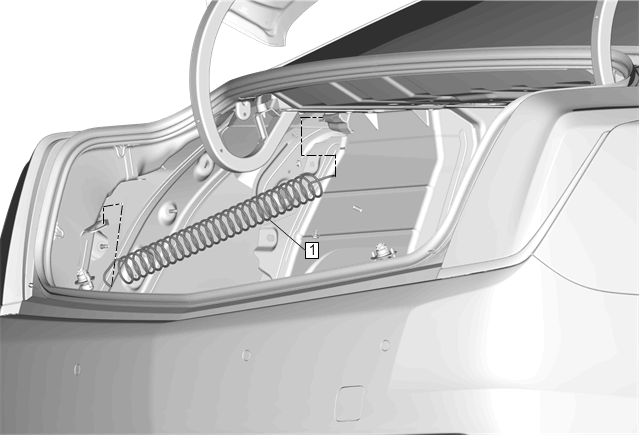

| 1 | Rear Compartment Lid Hinge Spring Procedure Pull the rear compartment lid spring backwards and unhook the rear compartment lid spring from the rear compartment lid hinge spring bracket. |
