Front Side Door Replacement

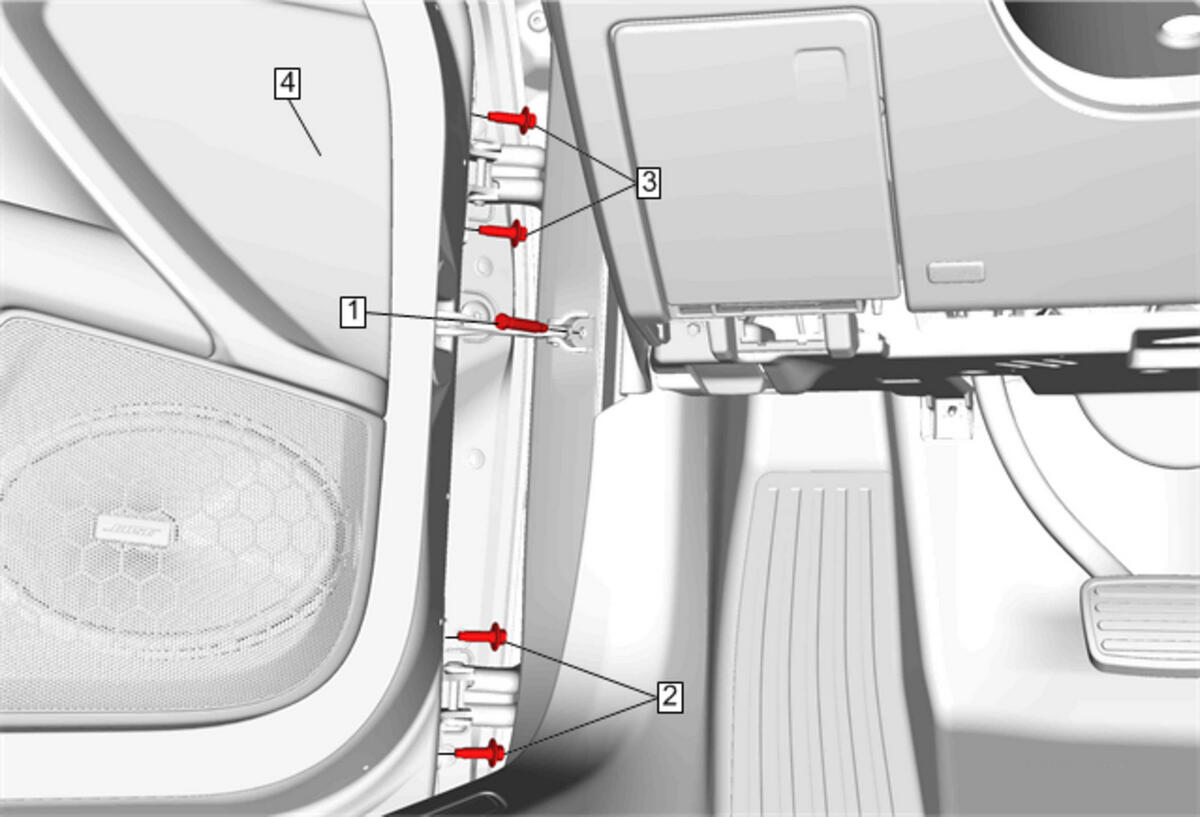

GM4256861Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Mark location of the hinge using a grease pencil before removing the bolts.
1 Front Side Door Check Link Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Front Side Door Hinge Bolt [2x]
Procedure
Support the door before removing the hinge bolt.
Tighten
25 N.m (18 lb ft)
3 Front Side Door Hinge Bolt [2x]
Tighten
25 N.m (18 lb ft)
4 Front Side Door

Procedure

  1. Disconnect the electrical connector.
  2. With the aid of an assistant, remove the door.
  3. Transfer components as necessary.
  4. Front Side Door Adjustment
