Front Side Door Lower Auxiliary Weatherstrip Replacement

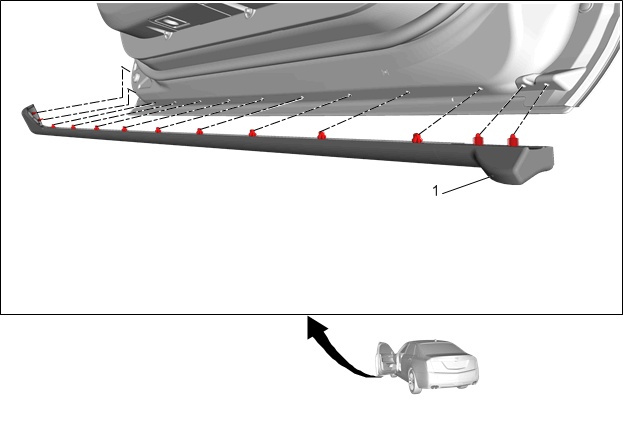

GM4258744Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Open the front side door.
1 Front Side Door Lower Auxiliary Weatherstrip
Procedure
Using the appropriate tool, remove the front side door lower auxiliary weatherstrip from the front side door panel.
