Front Side Door Front Auxiliary Weatherstrip Replacement

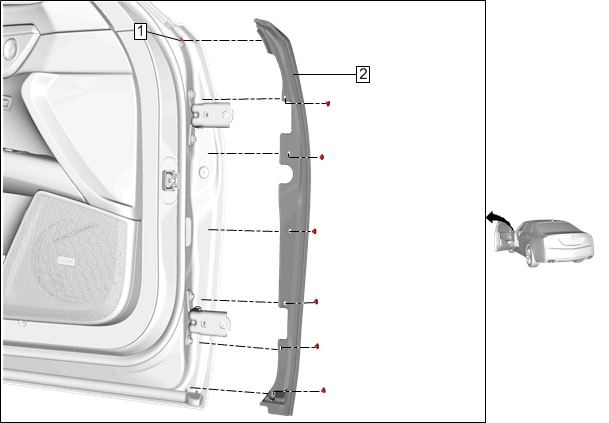

| Callout | Component Name |
|---|---|
| Preliminary Procedure Reposition the front side door. DO NOT remove the door from the vehicle. Only do the steps necessary to gain access to the part. Front Side Door Replacement |
|
| 1 | Front Side Door Front Auxiliary Weatherstrip Retainer [7x] Procedure Using the appropriate tool, remove the front side door front auxiliary weatherstrip retainers.
NOTE:
Upper and lower weatherstrip corners of the front side door will need to be released to service the front side door front auxiliary weatherstrip. |
| 2 | Front Side Door Front Auxiliary Weatherstrip |
