Front End Sheet Metal Cross Panel Reinforcement Replacement (Right Side)

Courtesy of GENERAL MOTORS COMPANY

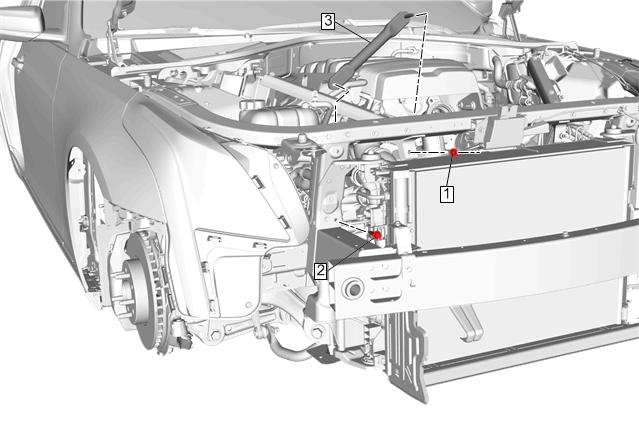

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Replacement
1	Front End Sheet Metal Radiator Opening Brace Nut CAUTION: Refer to Fastener Caution . Tighten  22 N.m (16 lb ft)
2	Front End Sheet Metal Radiator Opening Brace Bolt Tighten  22 N.m (16 lb ft)
3	Front End Sheet Metal Cross Panel Reinforcement
