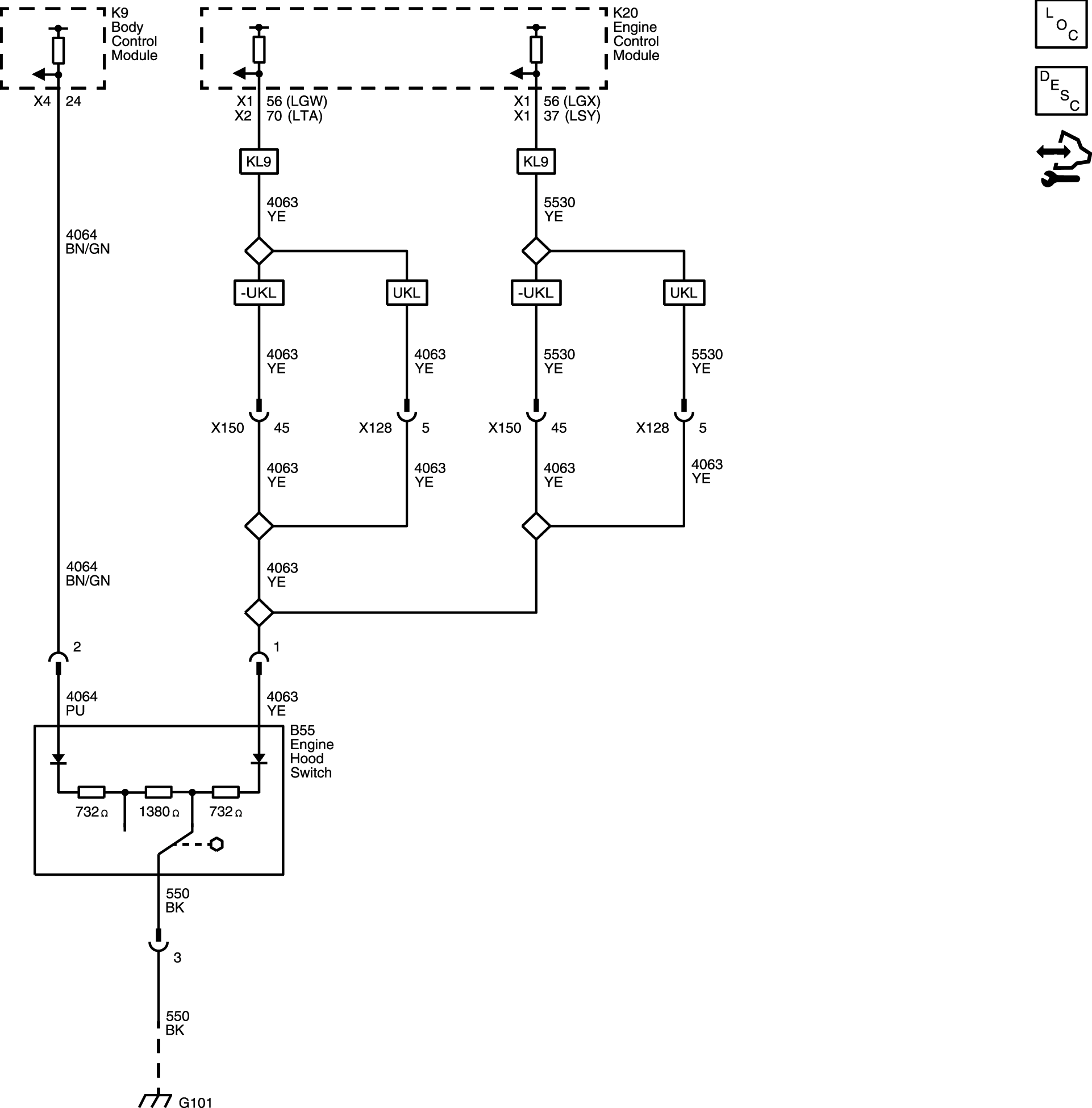

Home >> Cadillac >> 2020 >> CT6 V >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Bolted Exterior Body Panels And Closures >> Wiring Schematic Diagrams >> Hood Latch Wiring Schematics >> Hood Ajar Switch
