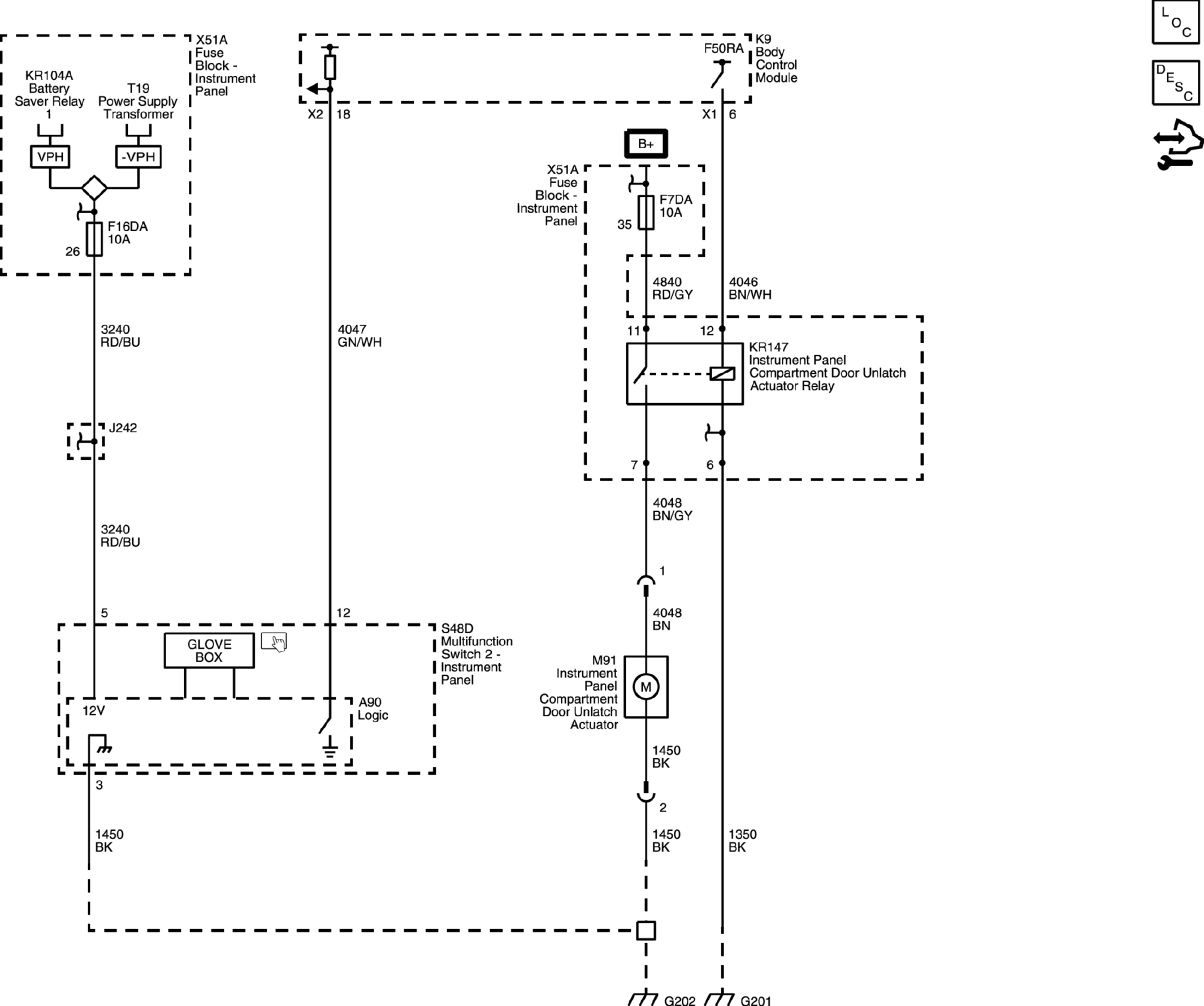

Home >> Cadillac >> 2020 >> CT6 V >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel And Console Trim >> Schematic Wiring Diagrams >> Instrument Panel and Console Wiring Schematics >> Instrument Panel Compartment Door
