Removal Procedure

  1. GM4248166Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Plate Applique Replacement - Right Side (2) - Remove

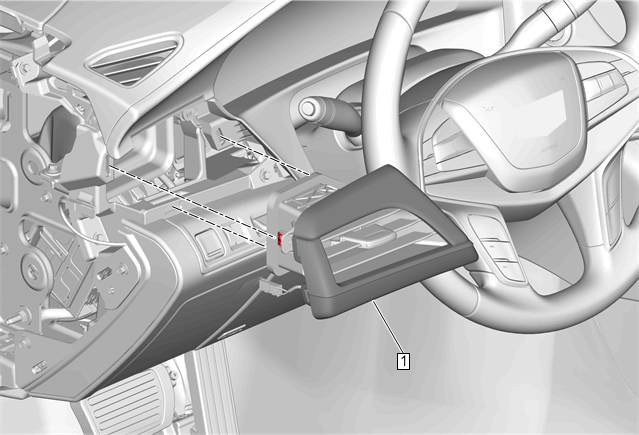

  2. GM4245375Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Plate Applique Replacement - Left Side (1) - Remove

  3. GM4248240Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Replacement (2) - Remove

  4. GM4249439Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Extension Replacement (1) - Remove

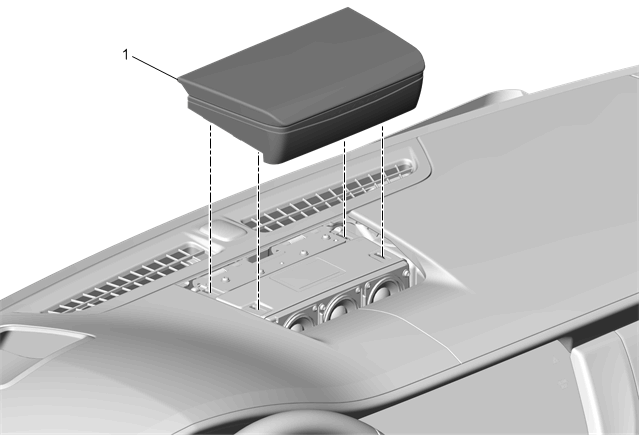

  5. GM4252113Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad Radio Center Speaker Opening Cover Replacement (1) - Remove

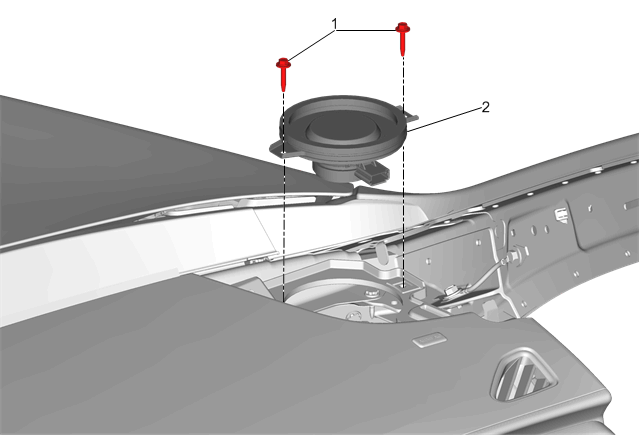

  6. GM4245833Courtesy of GENERAL MOTORS COMPANY

    Radio Front Speaker Replacement (2) - Remove

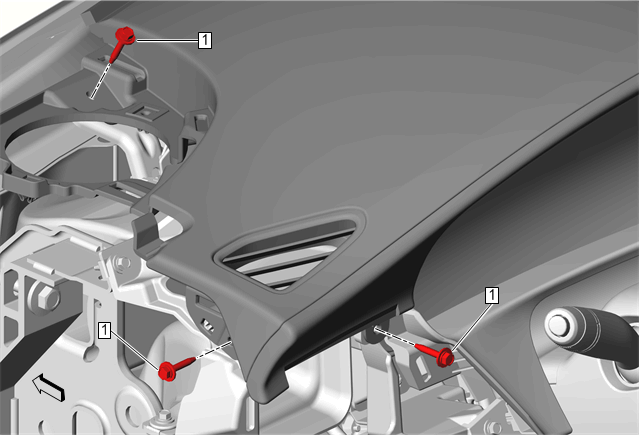

  7. GM4249629Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Accessory Trim Plate Bolt (1) - Remove [3x]

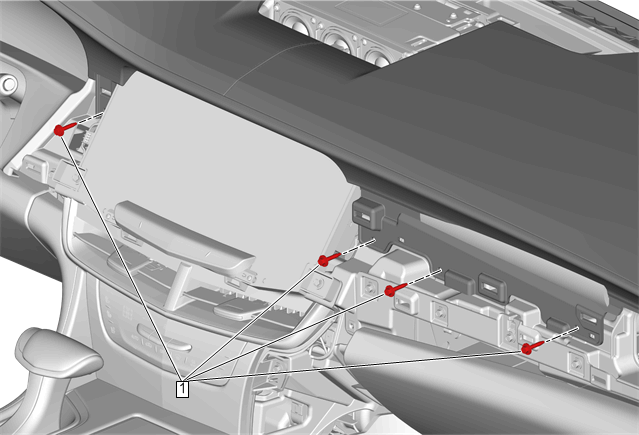

  8. GM4249632Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Accessory Trim Plate Bolt (1) - Remove [4x]

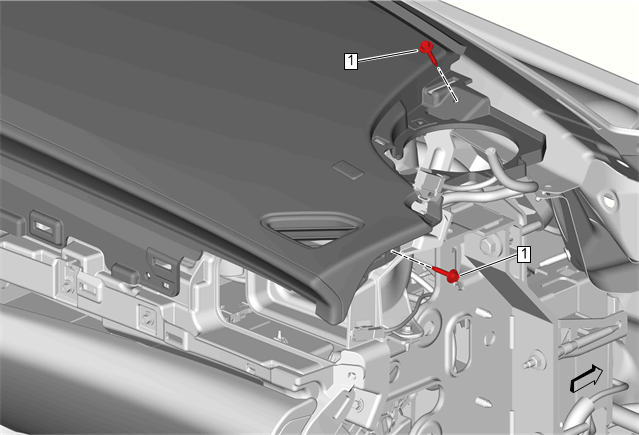

  9. GM4249637Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Accessory Trim Plate Bolt (1) - Remove [2x]

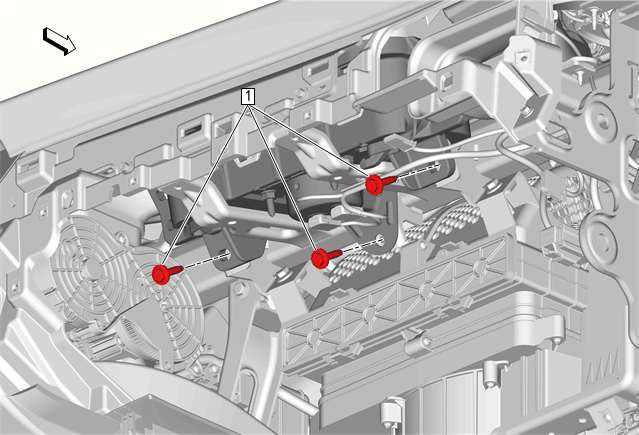

  10. GM4256455Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Airbag Bolt (1) - Remove [3x]

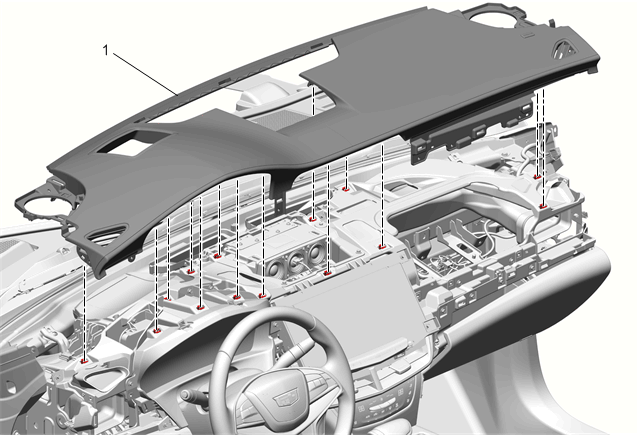

  11. GM4249642Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel (1) - Remove

  12. Disconnect electrical connections, if applicable.
  13. With the aid of an assistant, remove the instrument panel upper trim panel from the vehicle.
  14. Transfer components as necessary.
