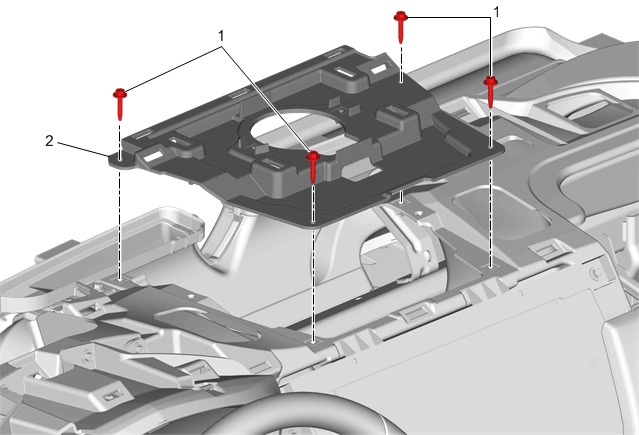

Instrument Panel Upper Trim Panel Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Instrument Panel Upper Trim Panel Replacement
1	Instrument Panel Upper Trim Panel Bracket Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Instrument Panel Upper Trim Panel Bracket
