Instrument Panel Lower Trim Panel Insulator Replacement - Left Side

Courtesy of GENERAL MOTORS COMPANY

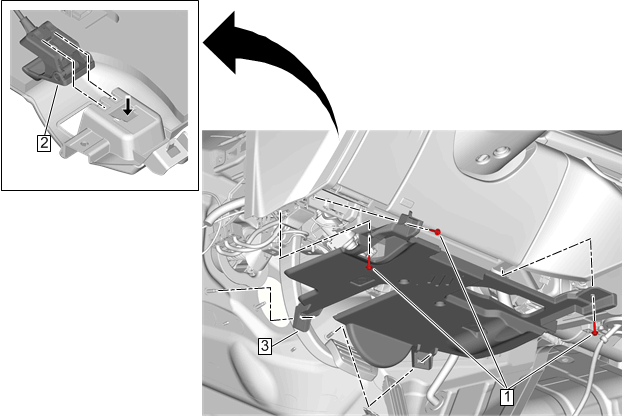

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedure Disable the SIR system. SIR Disabling and Enabling
1	Instrument Panel Trim Pad Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Hood Primary Latch Release Cable Handle Procedure Release the retaining tab.
3	Instrument Panel Lower Trim Panel Insulator Procedure Disconnect the electrical connectors. Transfer components as necessary. Enable the SIR System. SIR Disabling and Enabling
