Removal Procedure

  1. GM4258851Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Airbag - Driver Side (2) - Remove - Instrument Panel Lower Airbag Replacement - Driver Side

  2. GM4244460Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover (1) - Remove - Instrument Panel Outer Trim Cover Replacement

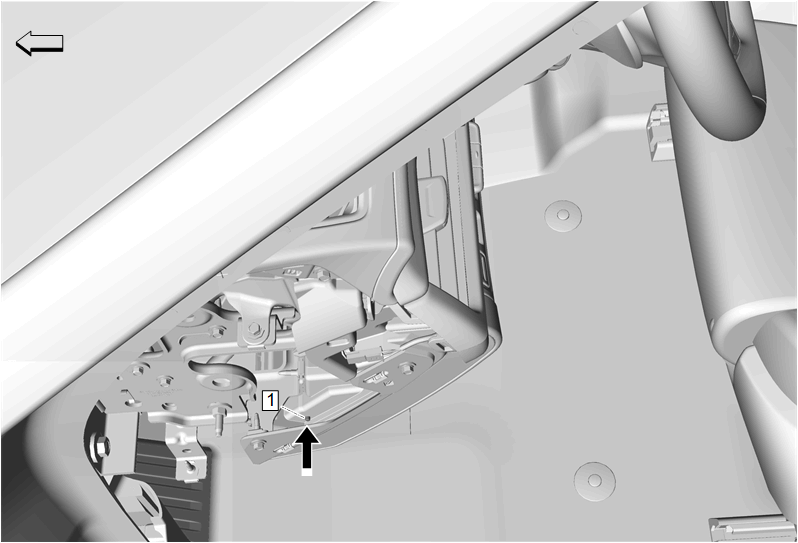

  3. GM5360033Courtesy of GENERAL MOTORS COMPANY

    Using the appropriate tool, push the instrument panel knee bolster pin (1) inward exposing the knurled end of the pin.

  4. GM5360035Courtesy of GENERAL MOTORS COMPANY

    Using the appropriate tool, pull the instrument panel knee bolster pin (1) to remove from the instrument panel knee bolster compartment.

  5. GM5360037Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Compartment (1) - Remove
