Installation Procedure

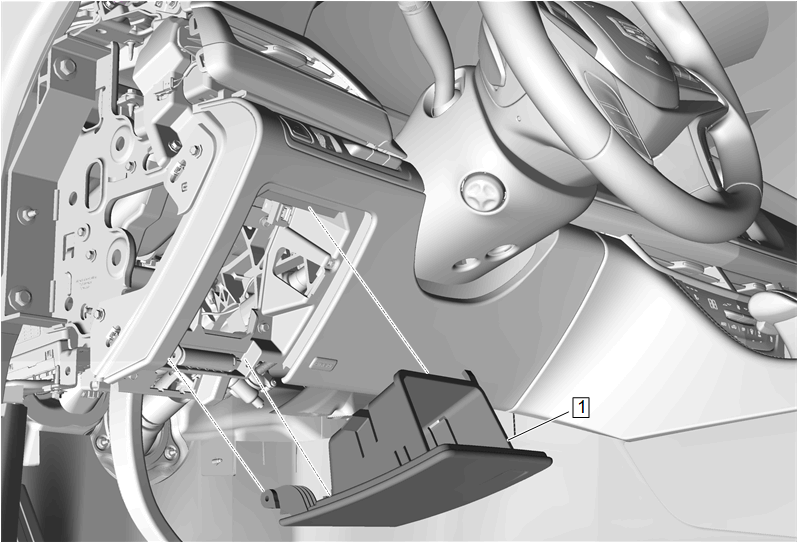

  1. GM5360037Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Compartment (1) - Install

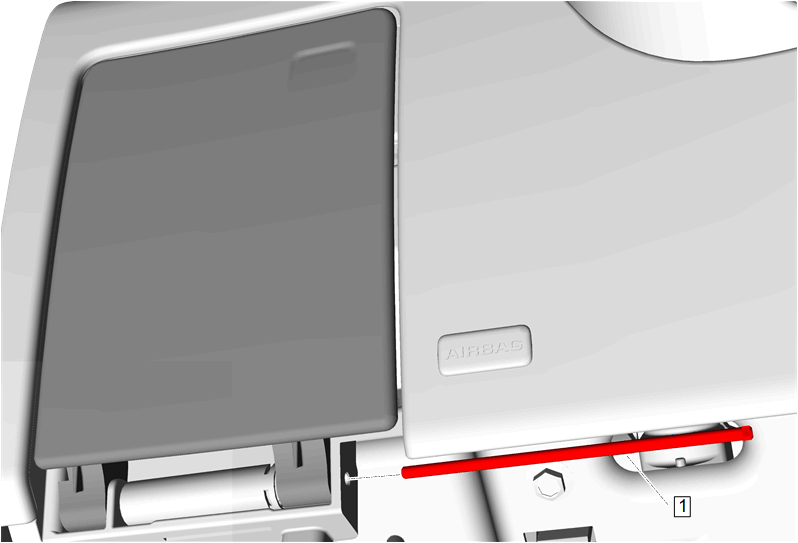

  2. GM5360035Courtesy of GENERAL MOTORS COMPANY

    Install the instrument panel knee bolster pin (1) through the instrument panel knee bolster compartment.

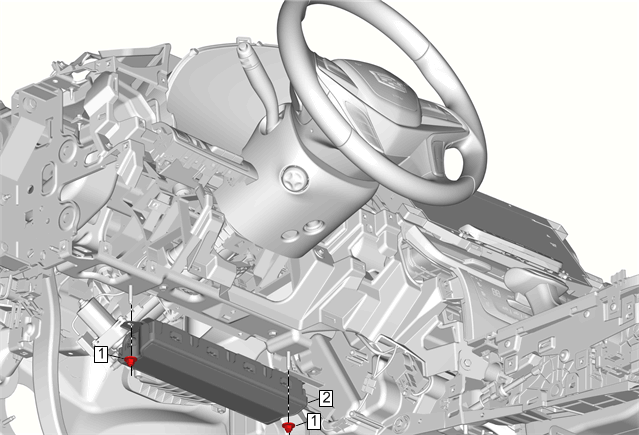

  3. GM4258851Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Airbag - Driver Side (2) - Install - Instrument Panel Lower Airbag Replacement - Driver Side

  4. GM4244460Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover (1) - Install - Instrument Panel Outer Trim Cover Replacement
