Installation Procedure

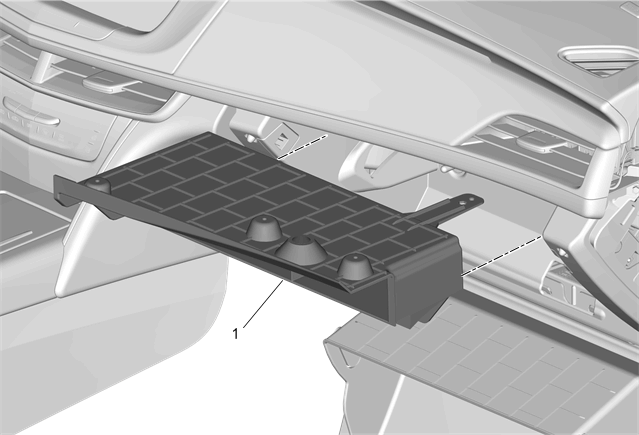

  1. GM4249103Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  2. Instrument Panel Compartment Shelf (1) - Install

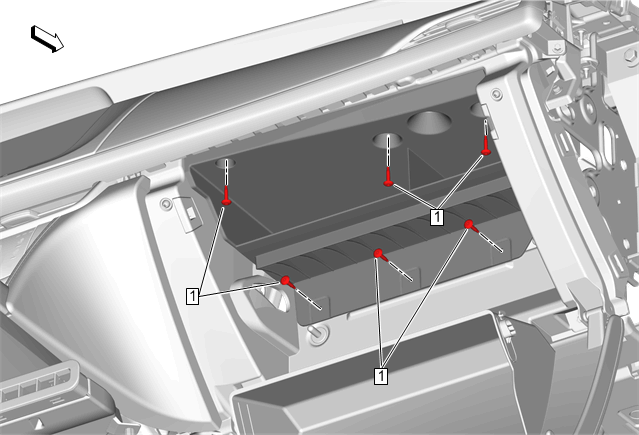

  3. GM4248942Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Bolt (1) - Install and tighten [6x} 2.5 N.m (22 lb in)

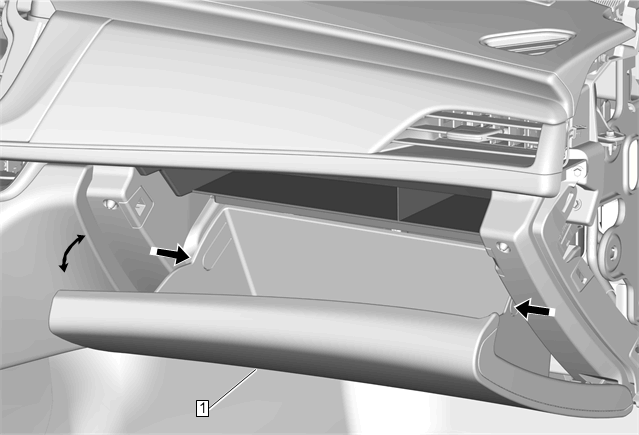

  4. GM4248935Courtesy of GENERAL MOTORS COMPANY

    Squeeze the sides of the compartment to return the compartment stops to the compartment door opening frame.

  5. Close the instrument panel compartment door. (1)

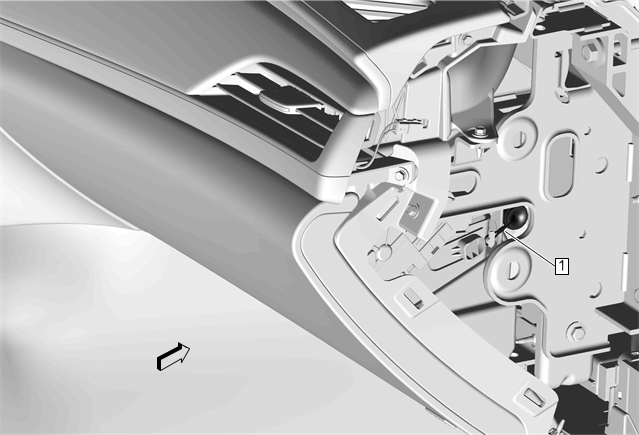

  6. GM4248933Courtesy of GENERAL MOTORS COMPANY

    Connect the instrument panel compartment door dampener to the instrument panel compartment door. (1)

  7. Instrument Panel Outer Trim Cover Replacement  - Install
