Installation Procedure

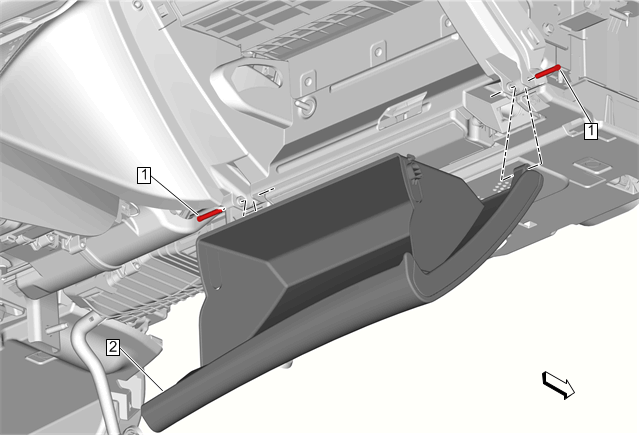

  1. GM4248940Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door (2) - Install

  2. Instrument Panel Compartment Door Hinge (1) - Install

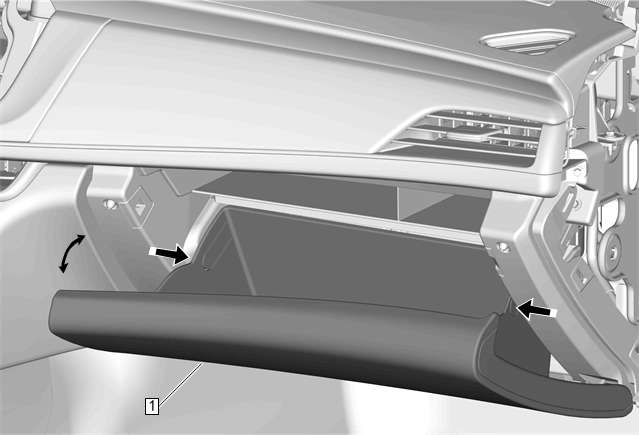

  3. GM4248934Courtesy of GENERAL MOTORS COMPANY

    Squeeze the sides of the compartment to return the compartment stops to the compartment door opening frame.

  4. Close the instrument panel compartment door. (1)
  5. GM4248933Courtesy of GENERAL MOTORS COMPANY

    Connect the instrument panel compartment door dampener to the instrument panel compartment door. (1)

  6. Instrument Panel Outer Trim Cover Replacement  - Install
