Installation Procedure

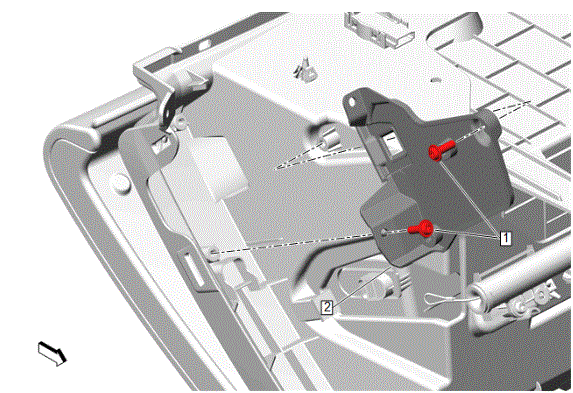

  1. Instrument Panel Compartment Door Lock Bezel (2) » Install
    CAUTION: Refer to FASTENER CAUTION
  2. Instrument Panel Compartment Bolt (1) » Install and tighten [2x] 2.5 Y (22 lb in)
    GM5136450Courtesy of GENERAL MOTORS COMPANY

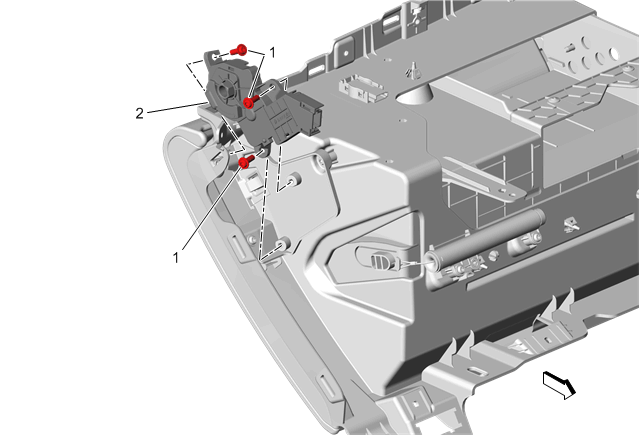

  3. Instrument Panel Compartment Door Latch Actuator (2) » Install - INSTRUMENT PANEL COMPARTMENT DOOR LATCH ACTUATOR REPLACEMENT
    GM4249238Courtesy of GENERAL MOTORS COMPANY
  4. Instrument Panel Compartment (2) » Install -INSTRUMENT PANEL COMPARTMENT REPLACEMENT
    GM4248240Courtesy of GENERAL MOTORS COMPANY
