Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

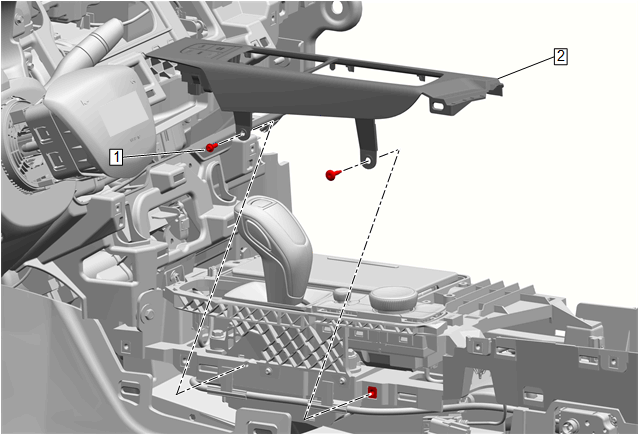

Front Floor Console Upper Panel (2) - Install
Front Floor Console Bolt (1) - Install and tighten [2x] 2.5N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel-Left Side (2) - Install - Front Floor Console Extension Panel Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

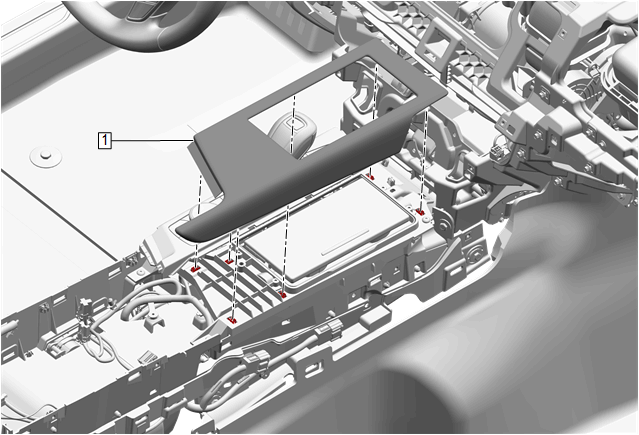

Front Floor Console Trim Plate (1) - Install - Front Floor Console Trim Plate Replacement
