Front Floor Console Replacement

Courtesy of GENERAL MOTORS COMPANY

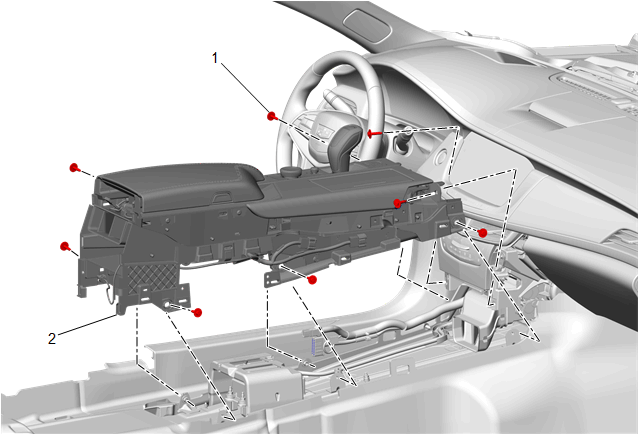

Callout	Component Name
Preliminary Procedures Front Floor Console Extension Panel Replacement - Left Side Front Floor Console Extension Panel Replacement - Right Side
1	Front Floor Console Bolt @ Floor Panel Tunnel Panel [8x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Floor Console Procedure Disconnect all electrical connectors. With the aid of an assistant, remove the console from the vehicle. Transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Front Floor Console Bolt @ Floor Panel Tunnel Panel [8x]

CAUTION:

Tighten
9 N.m (80 lb in)

Front Floor Console

Procedure
